TILED ACCESS | LIFT-OUT ACCESS
Tile Access Panel Lift Out door with Touch Catch lock
Non Fire Rated
Code:
ex VAT
Size (mm)
Other sizes
Made-to-measure lead time:
—
For large orders, lead times may vary — please contact us to confirm.
Hinge side *
Calculated price (per unit)
—
Price = price/sqm × (W × H) area
· minimum £110.00
Lock
Save on volume
Ordering 50 or more? We'll prepare a project-specific quote with delivery scheduling and account terms.
Call 01937 325 325 →
14-day returns
Phone support 8–5 Mon–Fri
Trusted by specifiers since 2007
Datasheet
Technical specifications
Installation Guide
PDF instructions
Product details
- Non-fire rated (Wall use only)

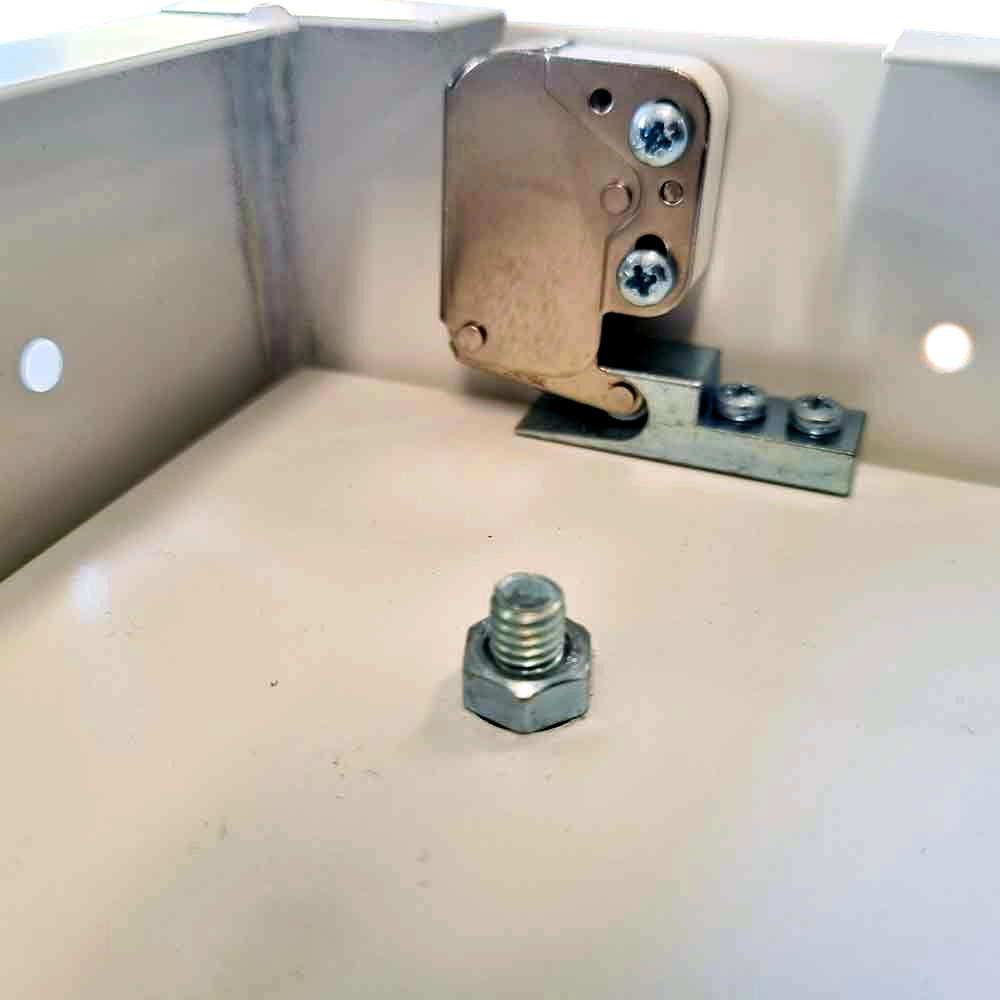

- Touch catch locks (press to release) with fitted safety wire
- Designed for a flush and neat tile finish
- Fixing holes in front and side of frame for face or side fixing
- Door can be removed in seconds, allowing bigger access
- Manufactured from durable steel (Inferred material)
- Suitable for all tile types up to 12mm overall thickness
- Complies with General Building Regulations
The TILE-LO is a robust, lift-out Tile Access Panel engineered to provide the largest possible clear opening for comprehensive access to concealed building services in tiled walls.
Access & Safety Mechanism:

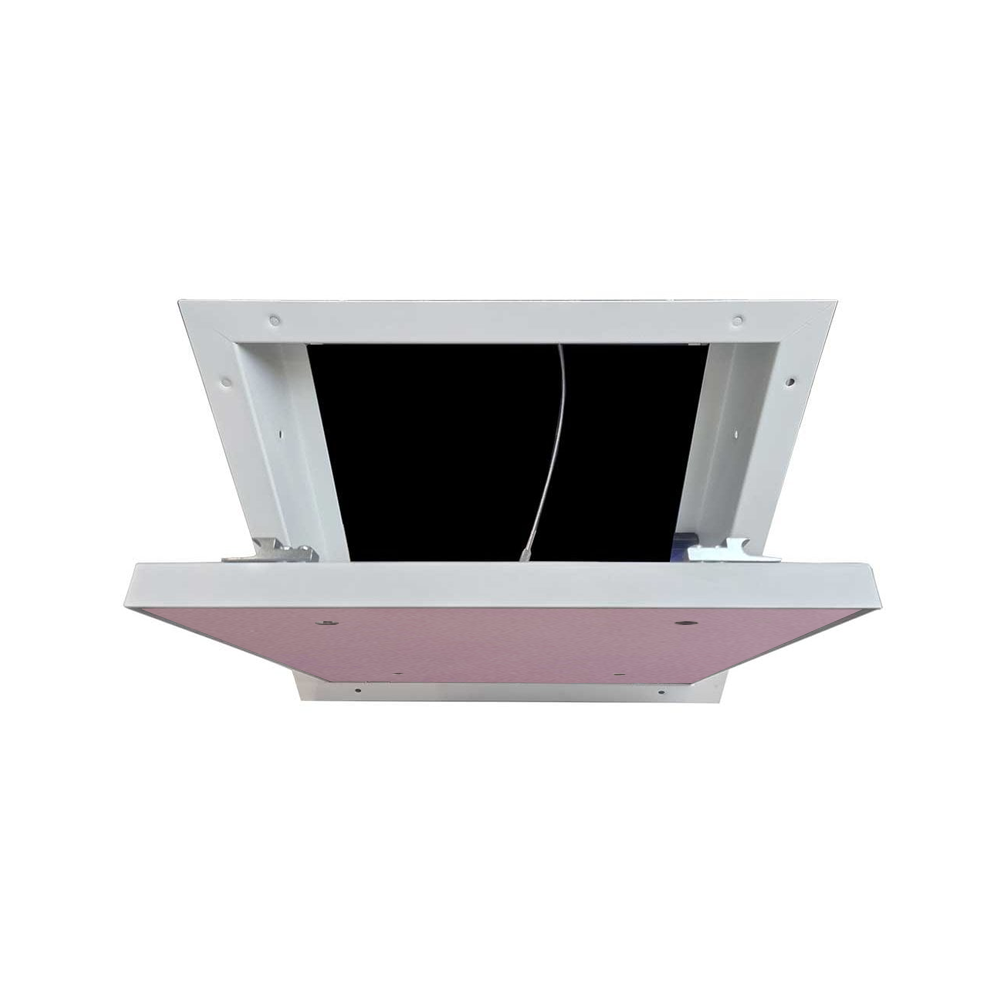

• Maximum Clear Opening: The lift-out door design provides a larger clear opening than equivalent-sized hinged panels, making it ideal for accessing bulky or complex services.• Secure Lift-Out Access: The door is secured by two locating studs on the bottom edge of the frame and two touch-catch locks near the top edge, ensuring a tight, controlled fit.
• Safety Feature: Includes a mandatory safety wire with a carabiner clip to prevent the door from being dropped or damaged during the lifting and opening process.
Material & Finish Preparation:

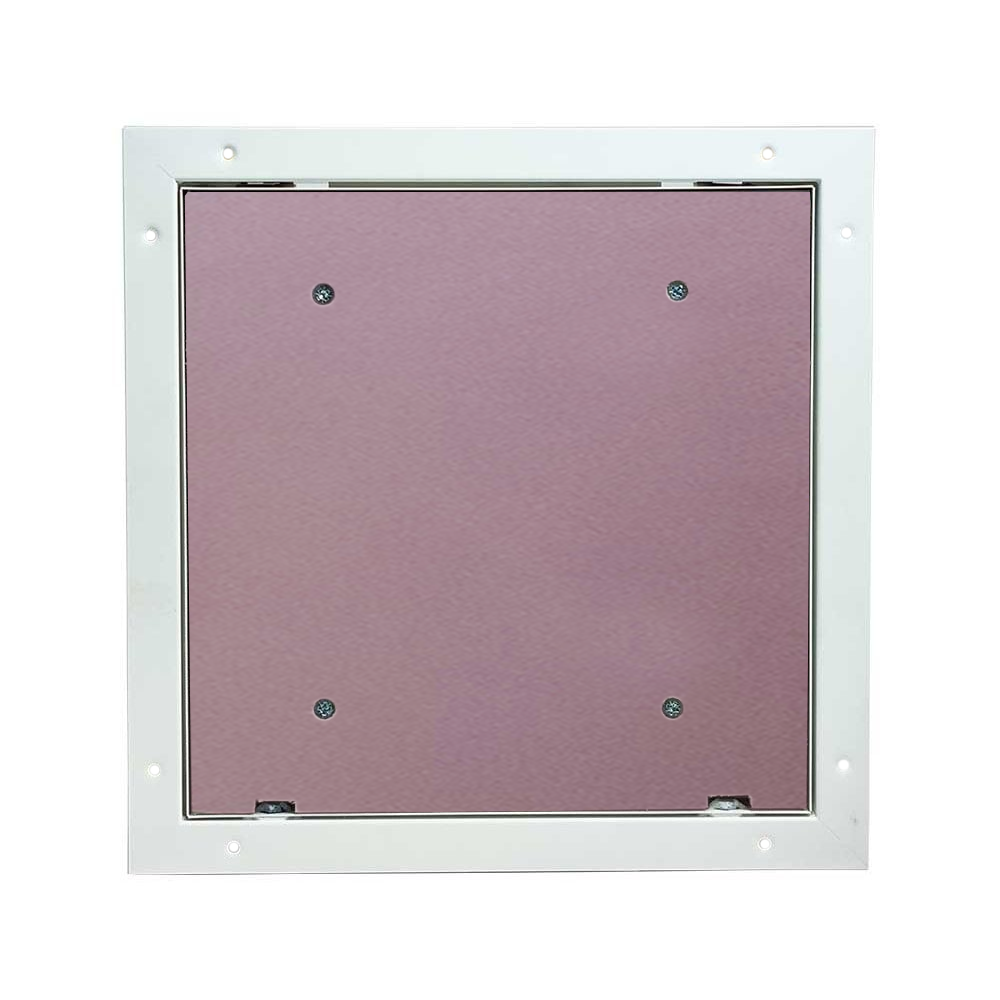

• Construction: Fabricated from Zintec steel and powder-coated white for stability and corrosion resistance.• Tile Ready Door: The lift-out door houses a plasterboard insert that provides the ideal substrate for tiles to be bonded to, ensuring aesthetic continuity with the surrounding wall.
| Code | Door Size | Structural Opening | Overall product size | Clear opening | Depth |
|---|---|---|---|---|---|
| TILE-LO 300X300 | 300x300mm | 318x318mm | 380x380mm | 270x270mm | 60mm |
| TILE-LO 450X450 | 450x450mm | 468x468mm | 530x530mm | 419x419mm | 60mm |
| TILE-LO 600X600 | 600x600mm | 618x618mm | 680x680mm | 570x570mm | 60mm |
Need higher spec?
Upgrade options on the same panel — useful for healthcare, education or acoustic-rated projects.
Current
Tile Access Panel Lift Out door with Touch Catch lock
TILED ACCESS | LIFT-OUT ACCESS
+ TILED ACCESS | HINGED ACCESS
Tile Access Panel Hinged Door with Touch Catch lock
From £103.16
View details →
Specification
- Fire rating
- Non Fire Rated
- Material
- Zintec Steel Frame, Plasterboard Door
- Wall or ceiling
- Wall Only
