6mm Georgian Wired Glass
Dry Riser 4 Way Inlet Cabinet
Non-Fire Rated · Picture Frame
Code:
ex VAT
Size (mm)
Other sizes
Lock
Save on volume
Ordering 50 or more? We'll prepare a project-specific quote with delivery scheduling and account terms.
Call 01937 325 325 →
14-day returns
Phone support 8–5 Mon–Fri
Trusted by specifiers since 2007
Product details
- ·

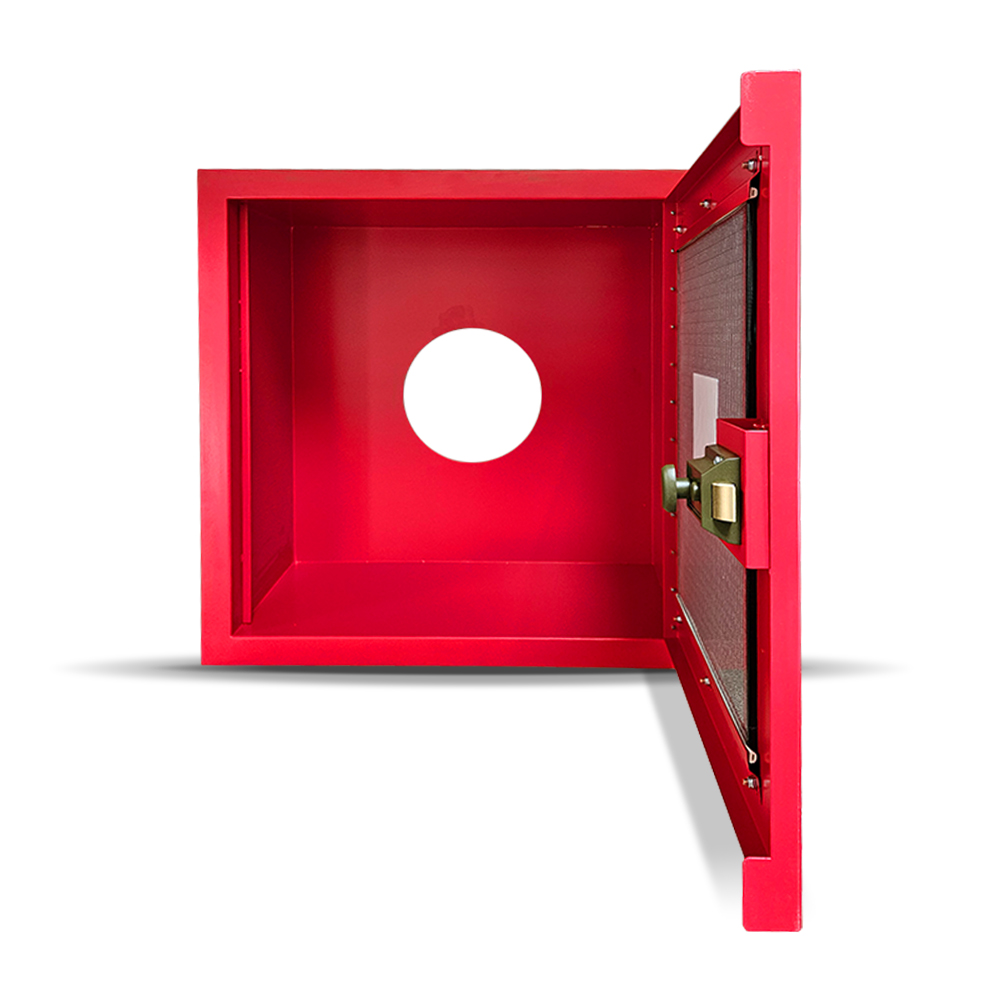

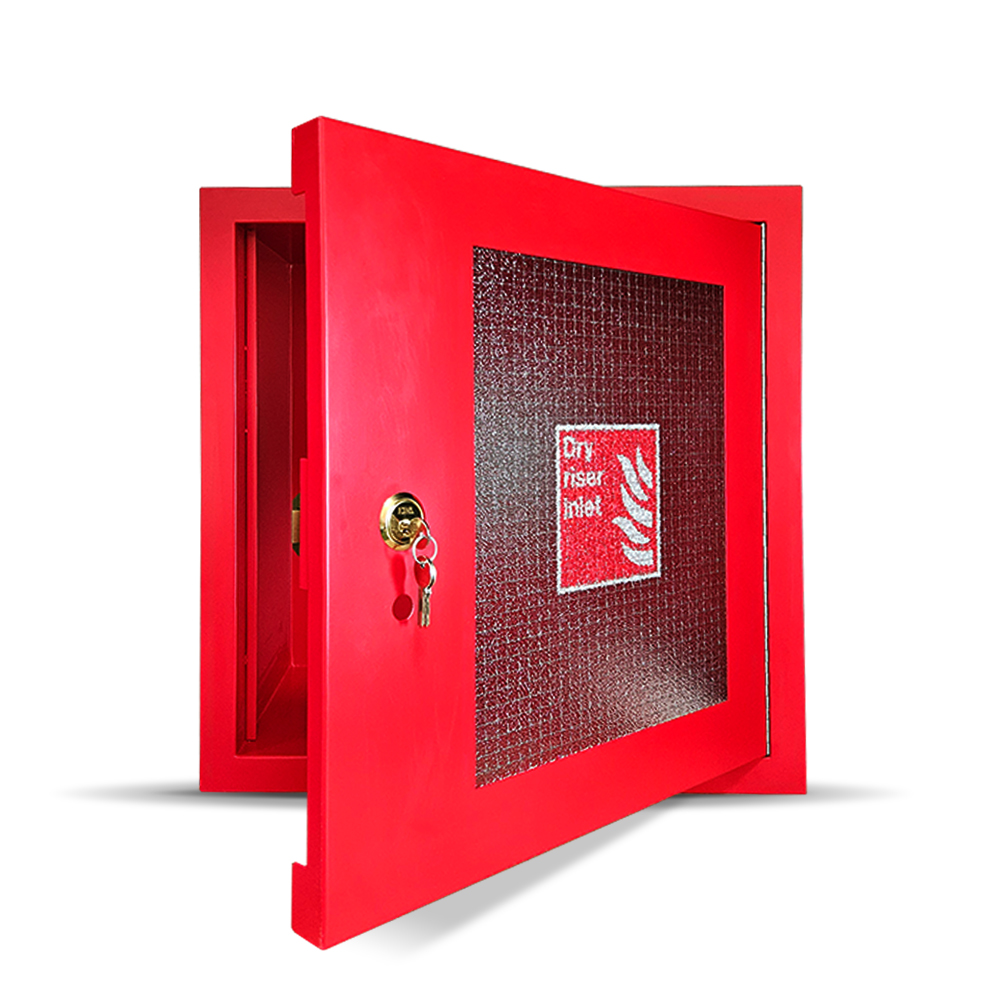

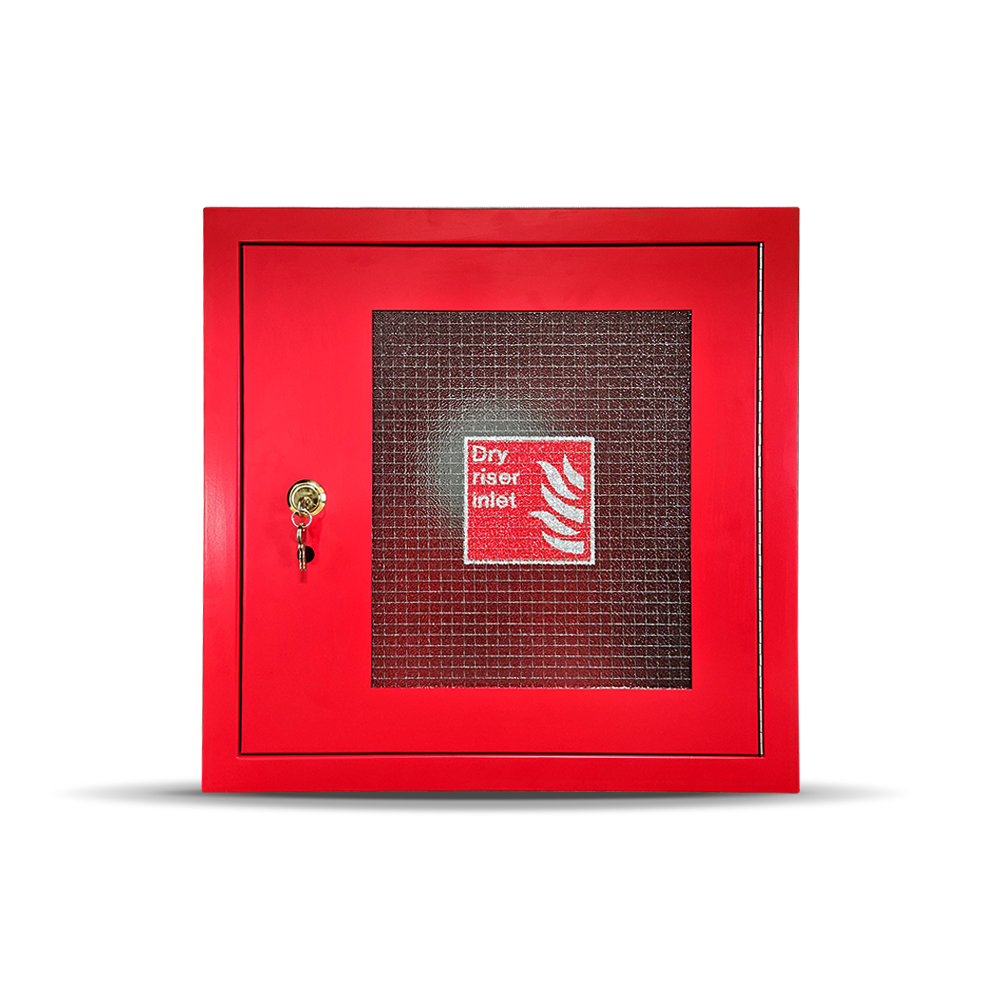

Vertical 4 Way Dry Riser Inlet Cabinet
- ·
Height 595mm x Width 595mm
- ·
Frame depth of 295mm
- ·
Complies with BS5041:Part 4:1975
- ·
Keyed alike Slam Lock
- ·
Fitted with 6mm Georgian wired glass - can be
broken in emergency
- ·
Replacement glass, locks and stickers available
separately
- ·
Pop Rivets for door replacement in situ
- · 20mm diameter hole in door to aid opening
- · Powder coated in Satin RAL 3002 (Traffic Red)
- · Available in Stainless Steel as a bespoke option
- · Fitted with a continuous hinge, door opens to
180˚
- · Bespoke sizes available (Contact us for more information)
Need higher spec?
Upgrade options on the same panel — useful for healthcare, education or acoustic-rated projects.
Current
Dry Riser 4 Way Inlet Cabinet
6mm Georgian Wired Glass · Picture Frame
+ 6MM GEORGIAN WIRED GLASS
Dry Riser Inlet Cabinet
From £210.60
View details →
+ 6MM GEORGIAN WIRED GLASS
Dry Riser Inlet Cabinet | Stainless Steel
From £335.00
View details →
+ 6MM GEORGIAN WIRED GLASS
Dry Riser Inlet Architrave & Door
From £198.58
View details →
Specification
- Frame style
- Picture Frame
- Fire rating
- Non-Fire Rated
- Tested to
- Complies with BS5041: Part 5: 1974
- Material
- Zintec Steel RAL 3002
- Frame width
- 40mm
- Wall or ceiling
- Wall Only
