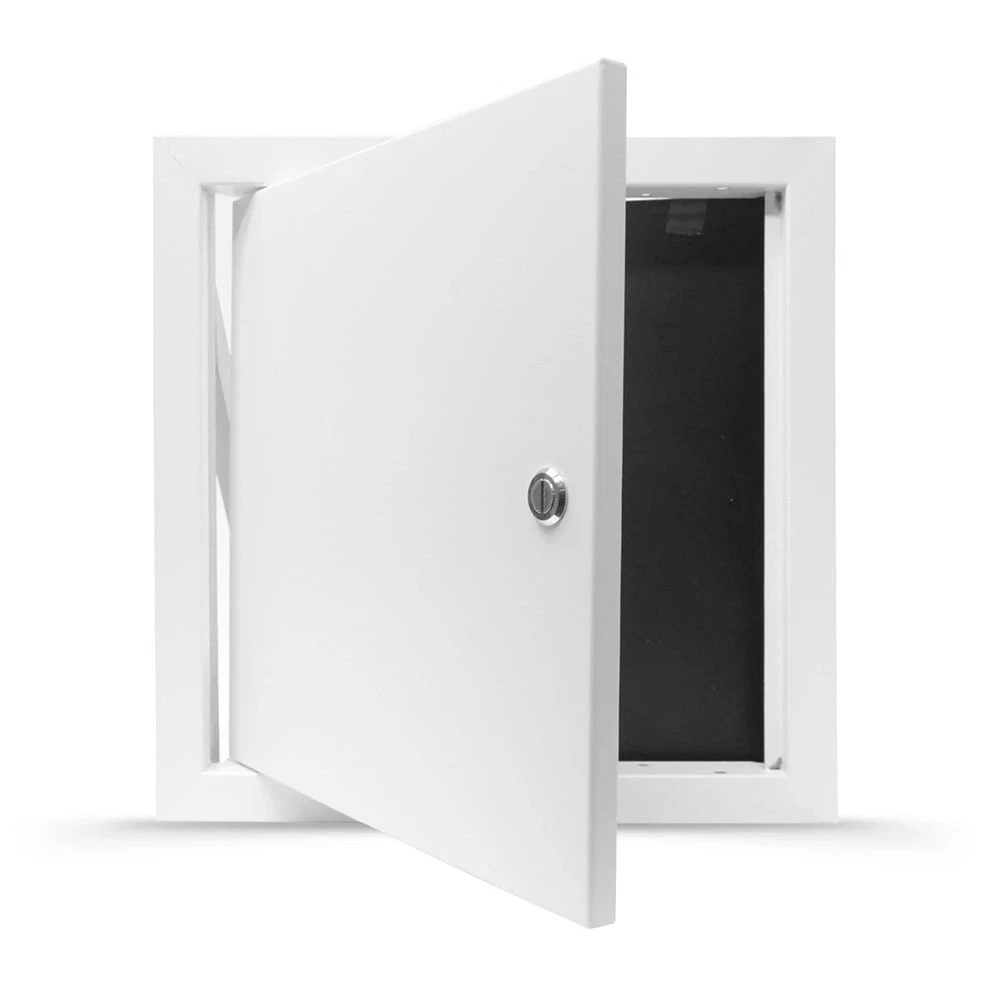

Economy Access Panel 450 x 450

Economy Access Panel

Name: Economy Access Panel
Brand: Jupiter Blue
SKU: EPFS-450X450
Price: 21.20 GBP
Availability: InStock

Non Fire Rated · Picture Frame

Code:

ex VAT

Size (mm)

Other sizes

Ordering 50 or more? We'll prepare a project-specific quote with delivery scheduling and account terms.

14-day returns Phone support 8–5 Mon–Fri Trusted by specifiers since 2007

Product details

EPFS 450x450 with Chrome Slotted Lock.

A robust metal access panel for accessing building services, plumbing services and electrical services without being too obtrusive.

Material: Zintec Steel

Colour: Powder coated in RAL 9016

Fire rating: Non-fire rated
Lock: Chrome Slotted Lock - Key not supplied, product can be opened with flat head screwdriver, coin, etc.

Internal fixing frame dimensions: 450x450mm

Structural opening required: 455x455mm

Depth: 30mm

Frame: 25mm Picture frame

Overall dimensions including frame: 500x500mm

Fitting Information:

Trim out a suitable opening that is 5mm larger than the access panel dimensions. Form and fix a 4 sided frame behind the opening, finishing flush with the edge of the opening.
The inner edge of the frame has pre-drilled fixing holes for easy fitting.
With the panel door open to 90 degrees, offer the frame up to or into the opening and push firmly to ensure the frame is flush with the face of the wall.
Fix using 8no 50mm screws through the counter sunk holes within the internal fixing frame. Do not over tighten the screws and if necessary, use packers.
Pay particular attention to the lock/catch side and ensure the catch still engages and the frame has not been warped by over tightening of the screws.
Once fitted the fixings are concealed.
Close hatch and use flat headed screwdriver to engage lock.
