1hr Fire Rated Access Panels with Plaster Door
Product details
- 1 Hour Fire Rated to BS EN 1364-2 & 1634-1 or BS476 Part 22
- Designed for a tight seal in drywall installations
- 21dB sound reduction on acoustic test
- Flush finish when taped and jointed
- Beaded Frame only for tape and jointing
- Powder-coated in white RAL9010 with satin finish
- Fabricated from Zintec steel
- Complies with Part B Building Regulations

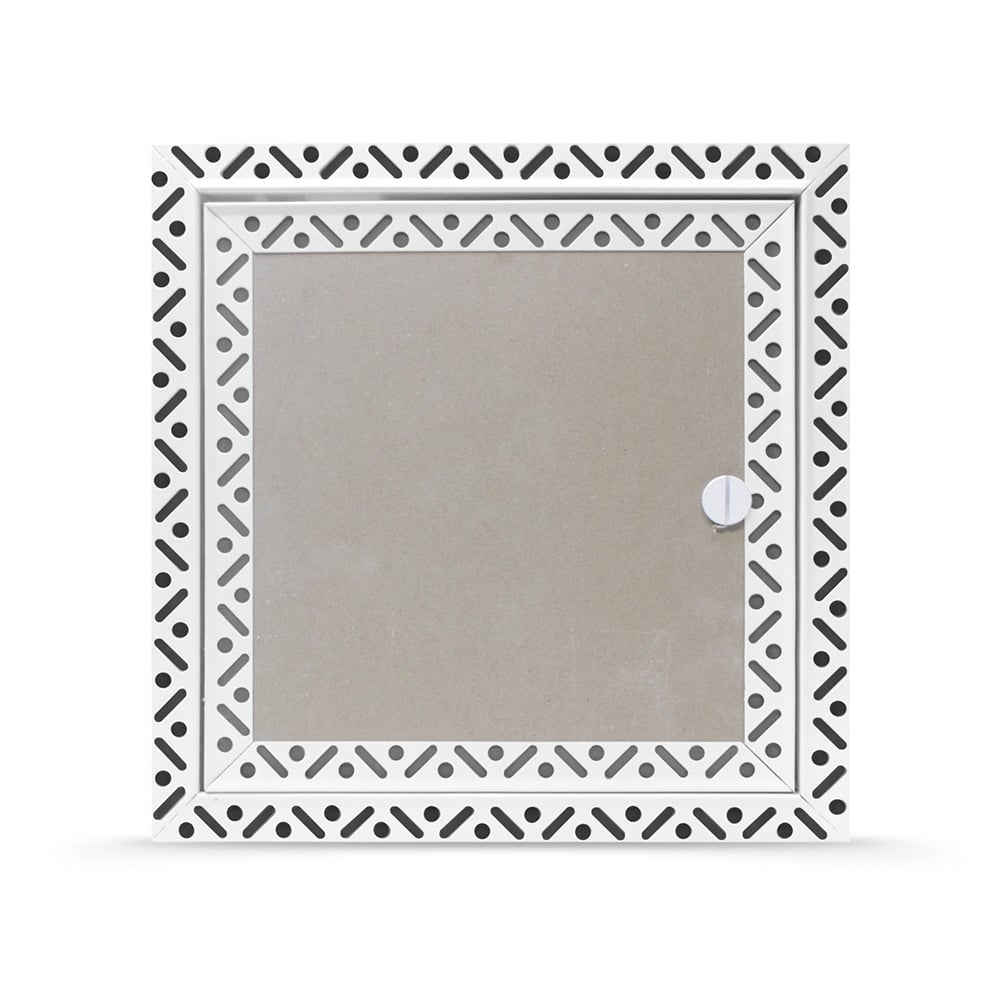

A plastered-in Fire-Rated Access Panel offering certified 60-minute fire protection and a discreet, flush finish.
Certified Fire Performance:
• Certified Fire Rating: Independently tested and certified to BS 476: Part 22, providing 60 minutes of Integrity and Insulation in both wall and ceiling applications.• Compliance: Designed to meet the rigorous requirements of Building Regulations Part B (Fire Safety), ensuring specification confidence in regulated environments.
Material Specification:
• Construction: Fabricated from durable, corrosion-resistant Zintec steel and integrated with specialised fire-board infill.• Finish: Supplied with a highly durable RAL 9010 satin White polyester powder coating for a robust and seamless finish.
Did you know?
We can make this panel to custom dimensions.
*Hinged on the long edge.

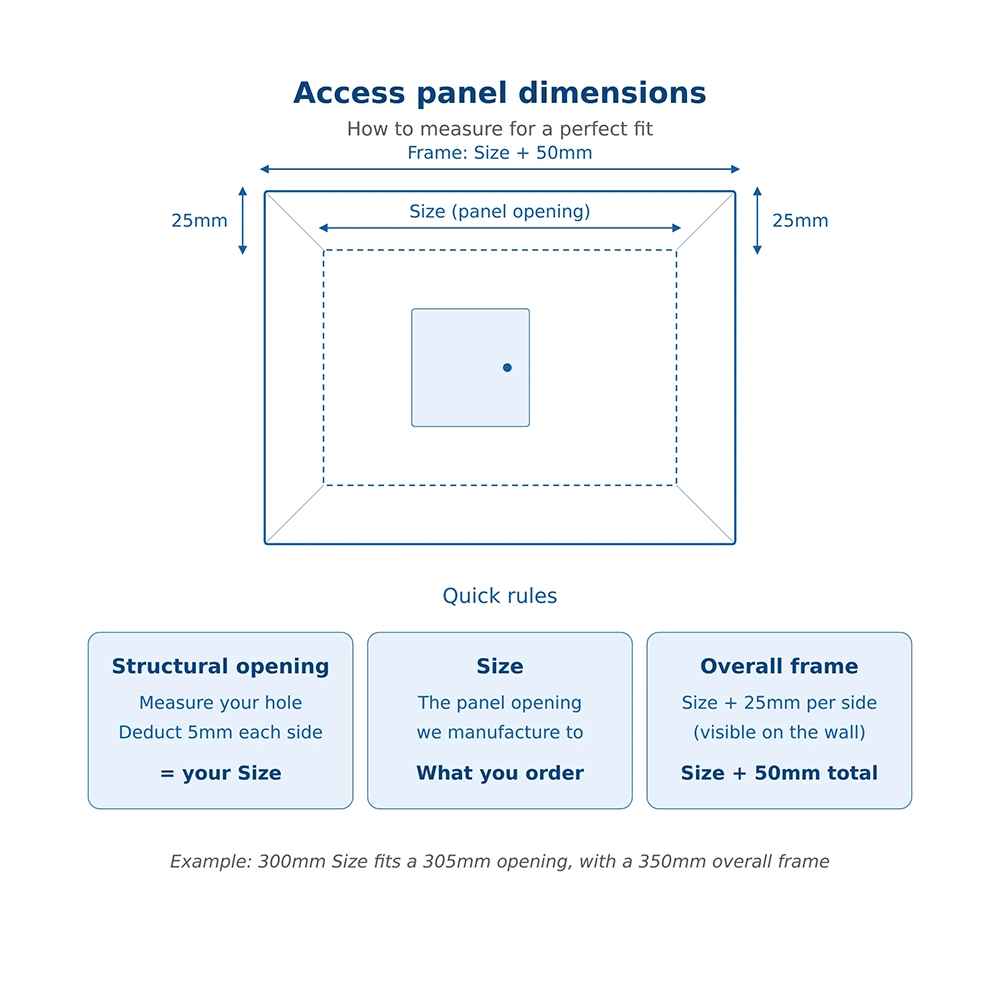

| Code | Size | Structural Opening | Clear Opening (Once Installed) |
Depth | Weight |
|---|---|---|---|---|---|
| BFFD-PLAST-200X200 | 200x200mm | 205x205mm | 140x173mm | 75mm | 2.8kg |
| BFFD-PLAST-350X350 | 350x350mm | 355x355mm | 290x322mm | 75mm | 5.8kg |
| BFFD-PLAST-450X450 | 450x450mm | 455x455mm | 385x424mm | 75mm | 7.8kg |
BFFD-PLAST-1200X600 |
1200x600mm* | 1205x605mm | 1140x572mm | 75mm | 21.4kg |
Reviews
-
Great product , fab quality & super delivery service , Will definatelty use again
-
I purchased 2 FR access panels in 200 x 200 size. I found these to be of high quality and really sturdy. They were well packaged and arrived in good time from order. They fitted really well in to the plasterboard but i fitted a timber batten to the top and bottom of the plasterboard on the reverse to provide a more solid fixing. The plasterer was able to skim to the panel and provide a really neat finish.
-
Excellent service when the first order was lost by the courier and the replacement arrived the following day. The panels have very good finish and will be unobtrusive when fitted.
-
very easy to fit and looks perfrct once plastered
-
Used a number of these in a high end development where AV cables (alot of them) were to be left approximately behind TV positions for future proofing. The hatches once plastered are very discreet and good quality.
-
good access panel, fast delivery
Specification
- Frame style
- Beaded Frame
- Fire rating
- 1 Hour Fire Rated
- Tested to
- Either BS EN 1364-2 and 1634-1 or BS476 Part 22
- Material
- Zintec Steel Frame, Plasterboard Door
- Frame width
- 25mm
- Wall or ceiling
- Both Wall & Ceiling
- Acoustic option
- 21dB Acoustic reduction
