CIRCULAR | BEADED FRAME
Beaded Frame Circular Access Panels For Ceilings
Non Fire Rated · Beaded Frame
Code:
ex VAT
Size (mm)
Other sizes
Save on volume
Ordering 50 or more? We'll prepare a project-specific quote with delivery scheduling and account terms.
Call 01937 325 325 →
14-day returns
Phone support 8–5 Mon–Fri
Trusted by specifiers since 2007
Datasheet
Technical specifications
Installation Guide
PDF instructions
Product details

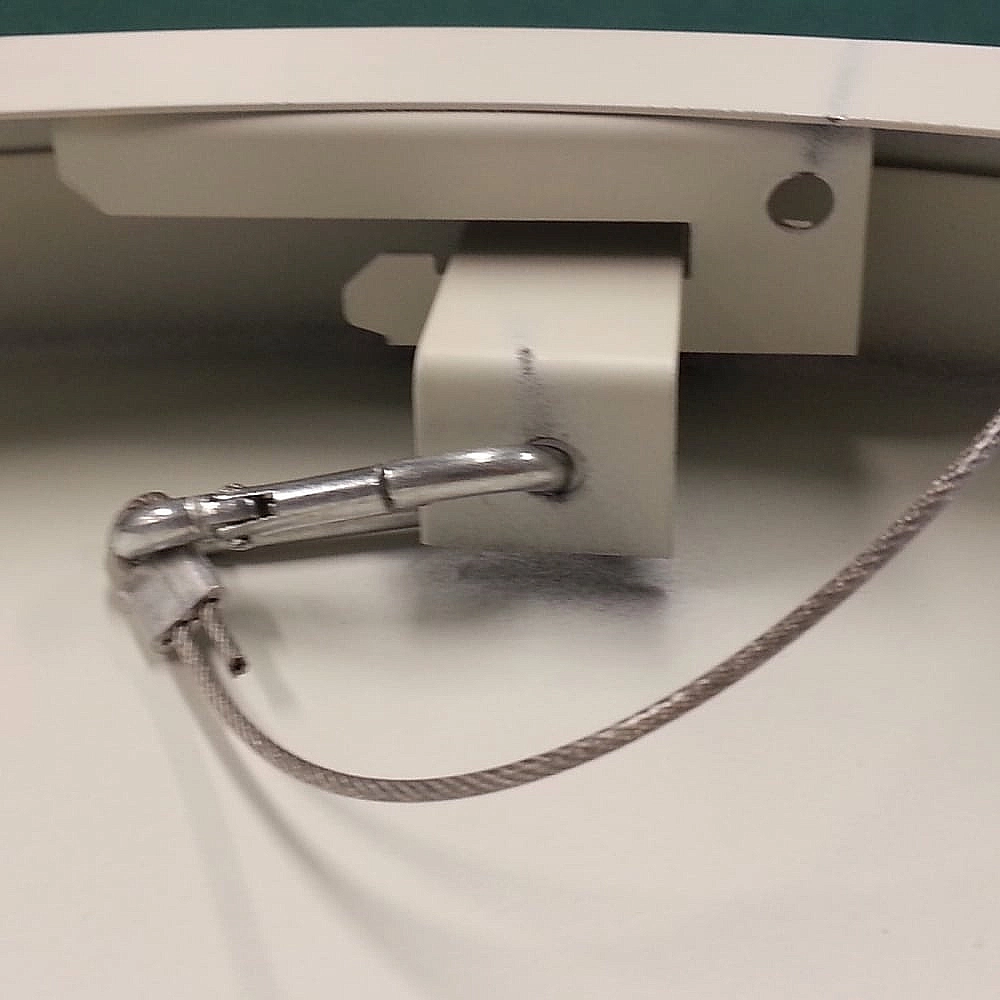

- Safety cable fitted on all sizes
- Invisible locking with twist and locate action
- 6 Stock Sizes available
- 34mm deep slim profile
- Picture or Beaded Frame options available
- Contemporary smooth finish
- Powder-coated in White RAL 9010
- Ceiling use only

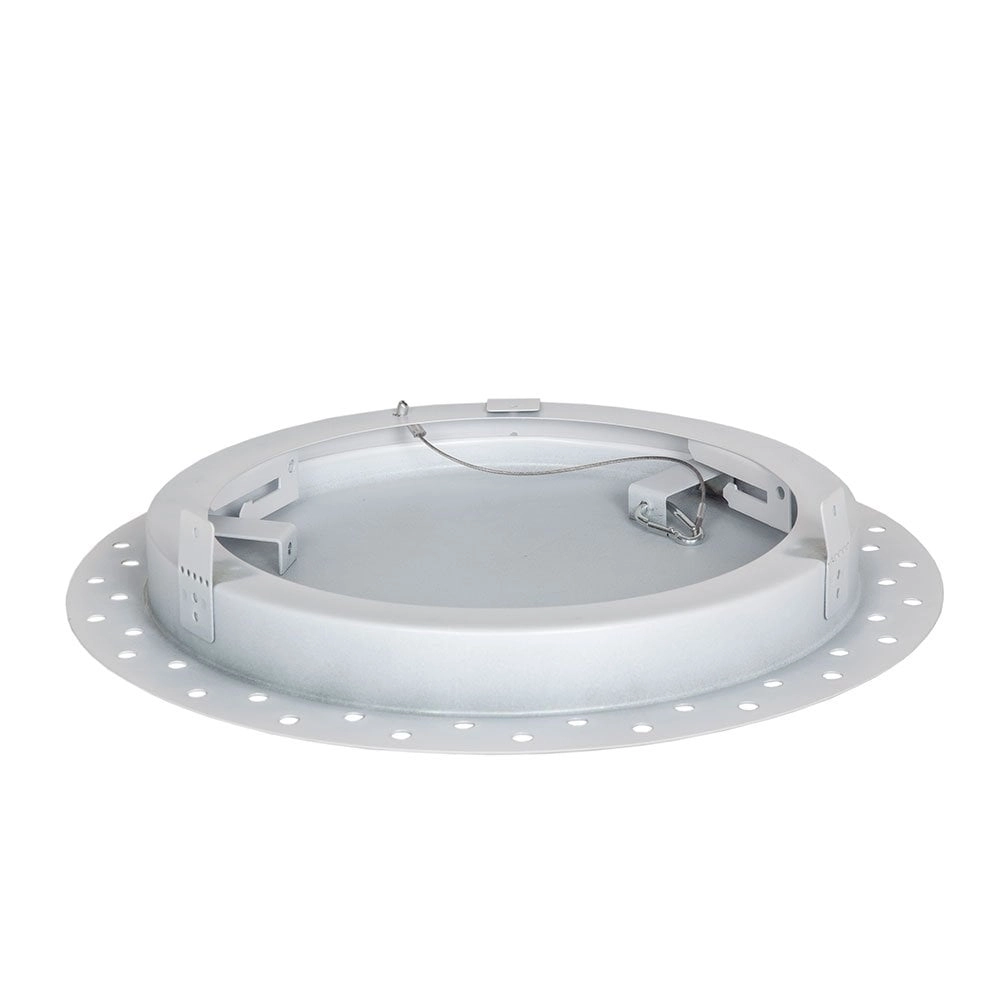

The SCAPB range offers a sleek, non-fire rated Circular Access Panel solution, engineered for highly aesthetic and inconspicuous installation exclusively in ceiling applications.
Aesthetic Design & Seamless Integration:

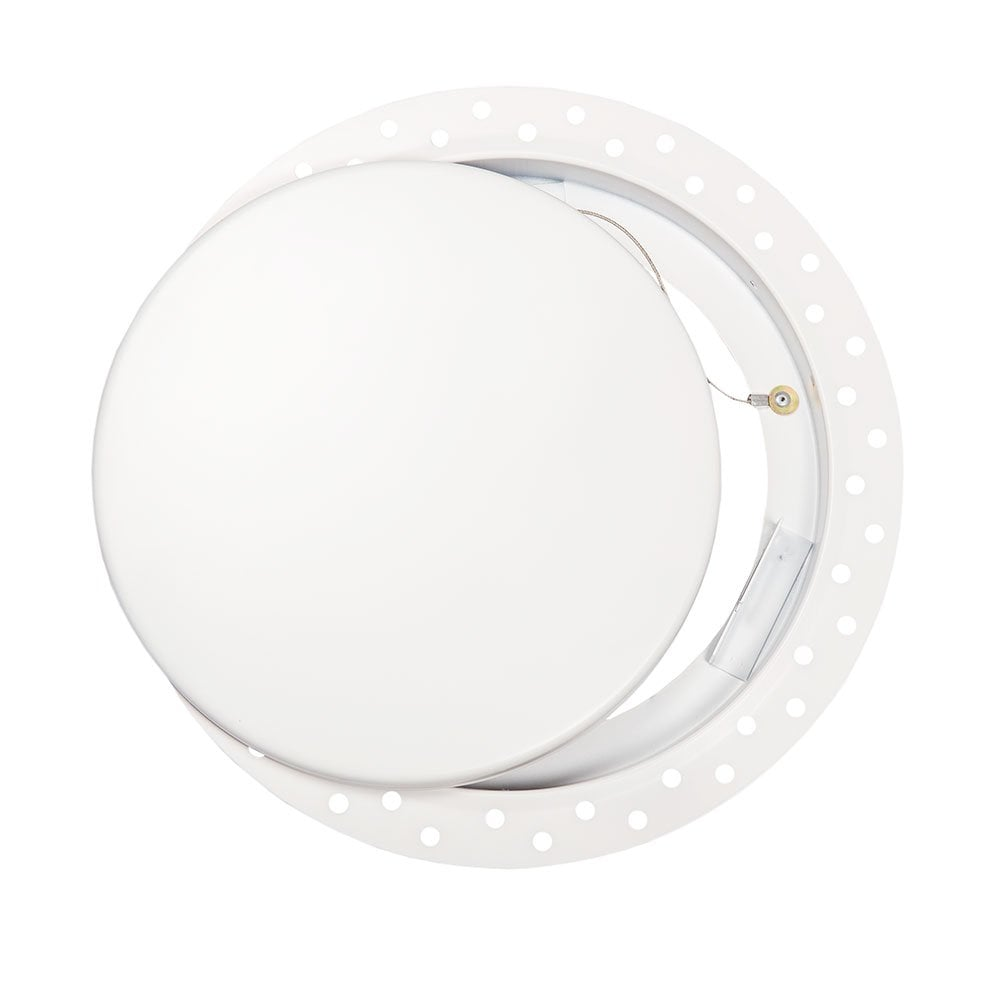

• Circular Geometry: Designed specifically as a round access solution, providing an aesthetic alternative to standard square or rectangular panels.• Frame Options: Available with a Picture Frame (SCAP) for standard surface mounting or a Beaded Frame (SCAPB) to integrate seamlessly into plaster ceilings for minimal visual impact.
Access Mechanism & Construction:

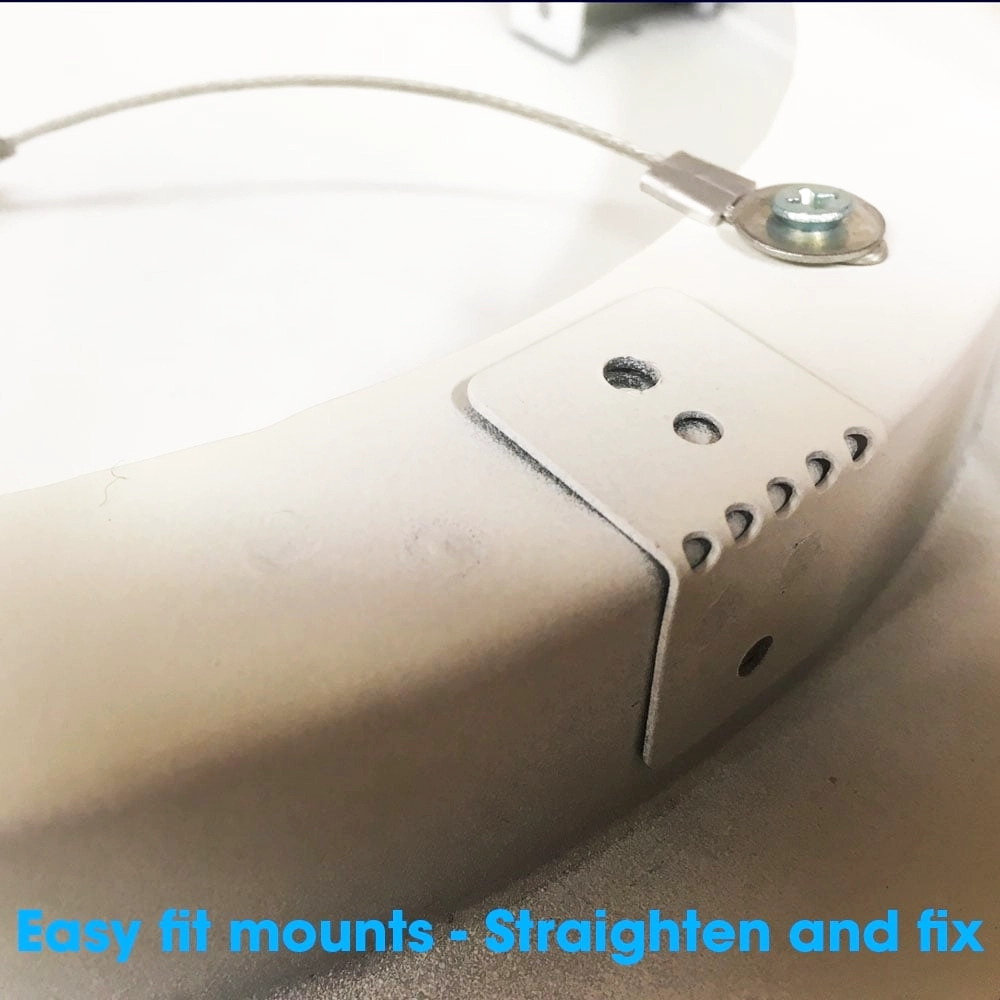

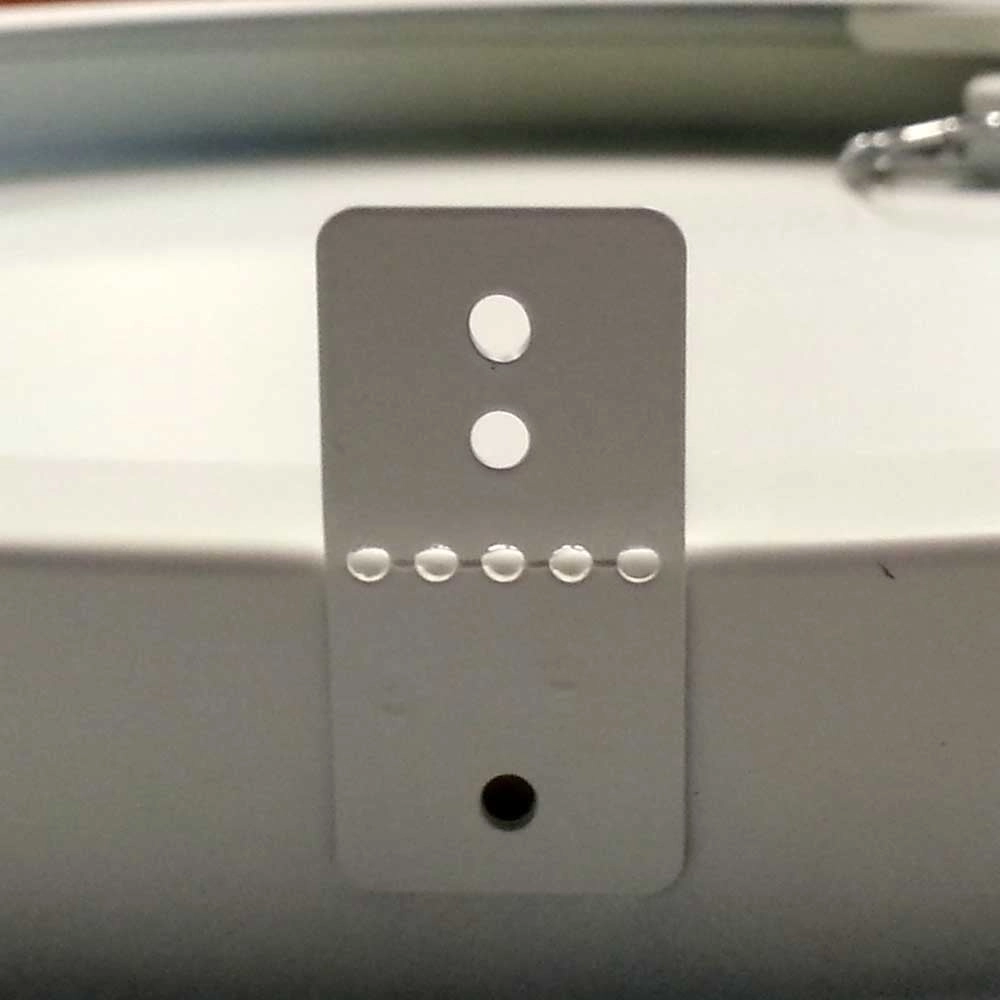

• Concealed Fixing System: The removable inner panel is secured by concealed locating pins on the outer frame, ensuring a completely hardware-free appearance when closed.• Push-and-Twist Access: Access is achieved via a unique, tool-free method: pushing the inner panel slightly inwards, twisting anti-clockwise to open, and twisting clockwise to securely re-fit the panel.
• Material & Finish: Fabricated from durable Zintec steel and coated in RAL 9010 White (20% gloss), ensuring perfect aesthetic consistency with our entire range of metal access panels.
| Code | Positioning Clips | Safety Cable | Fixing Points | Structural Opening |
|---|---|---|---|---|
| SCAPB150 | 3 | 1 | 3 | 155mm |
| SCAPB200 | 3 | 1 | 3 | 205mm |
| SCAPB300 | 3 | 1 | 3 | 305mm |
| SCAPB400 | 3 | 1 | 3 | 405mm |
| SCAPB450 | 3 | 1 | 3 | 455mm |
| SCAPB600 | 3 | 1 | 3 | 605mm |
Specification
- Frame style
- Beaded Frame
- Fire rating
- Non Fire Rated
- Material
- Zintec Steel, white finish
- Frame width
- 25mm
- Wall or ceiling
- Ceiling Only
