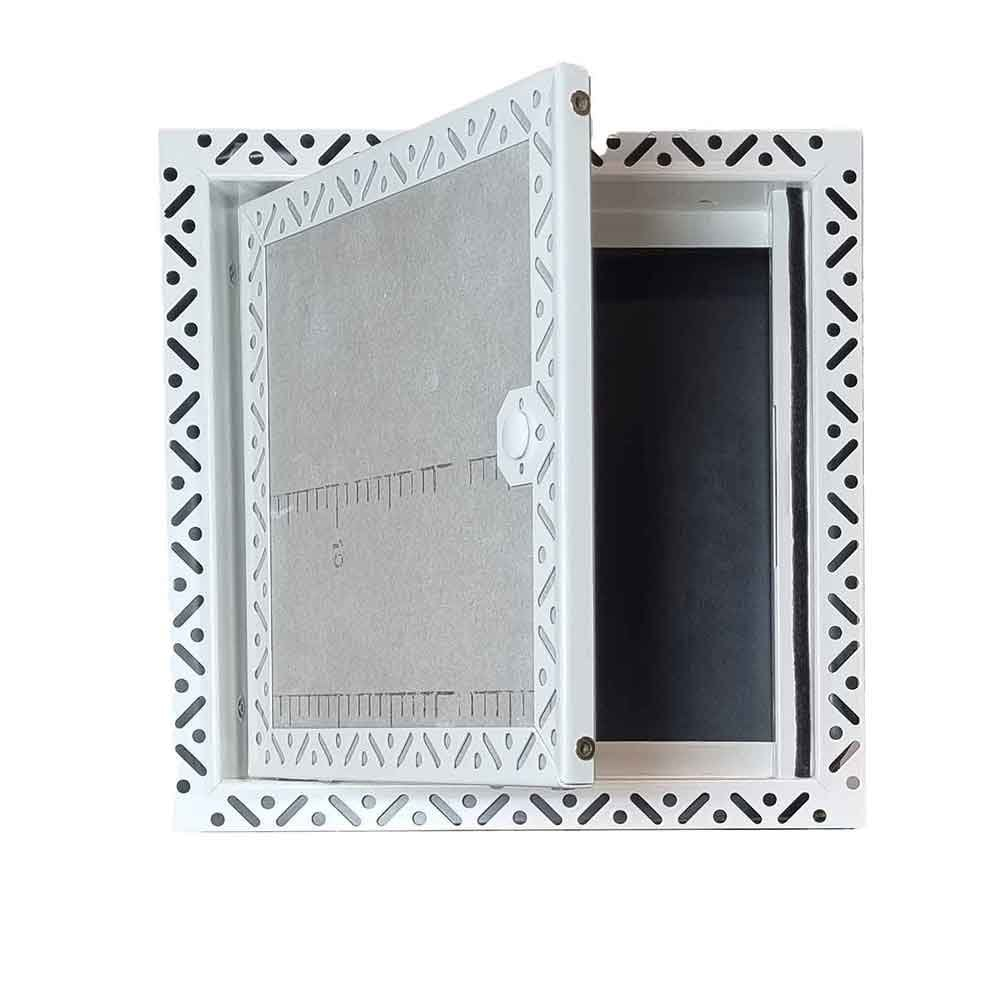

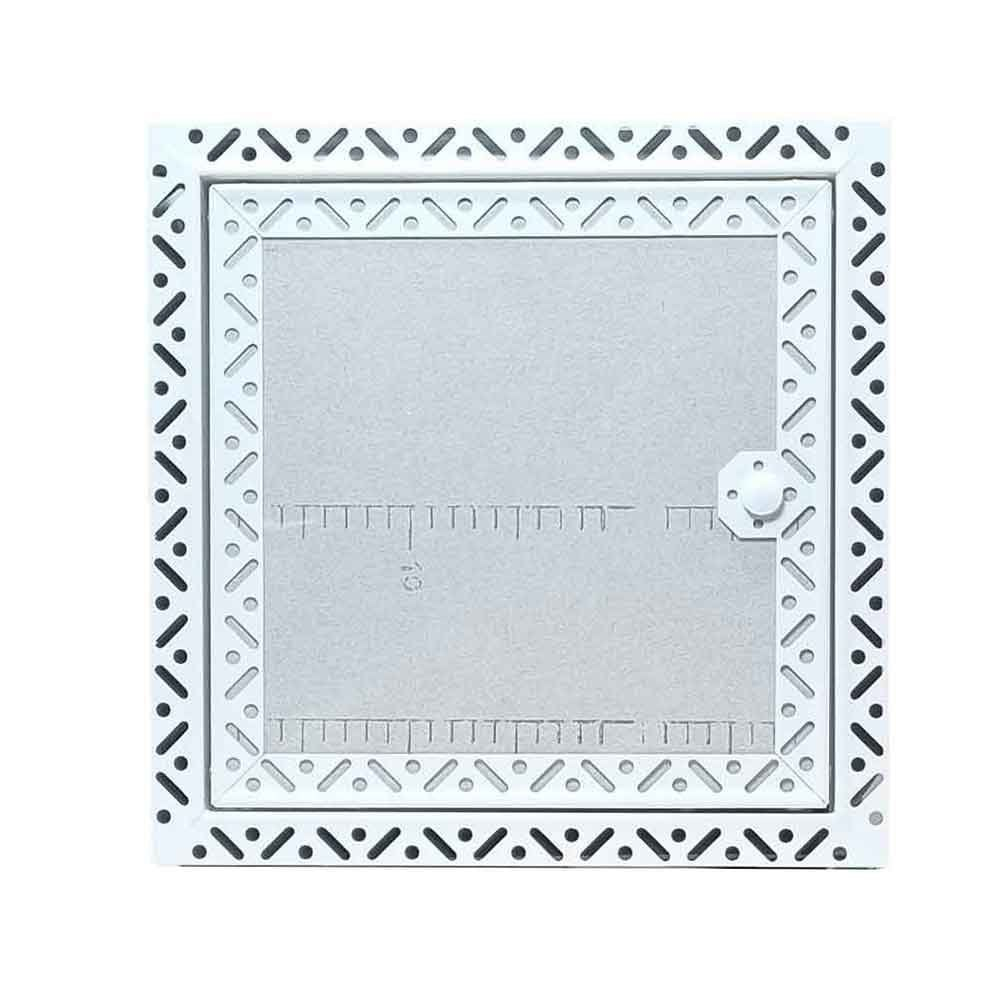

Beaded Frame Plasterboard Door Access Panel
Product details
- Non-Fire Rated (Suitable for general use)
- Lock is obscured by a white push-fit plastic bung
- 21dB reduction on acoustic test
- Outer Frame & Door Frame must be taped and jointed
- Beaded Frame Only for tape and jointing
- Powder-coated in white RAL9010 with satin finish
- Fabricated from 0.9mm Zintec steel
- Complies with General Building Regulations

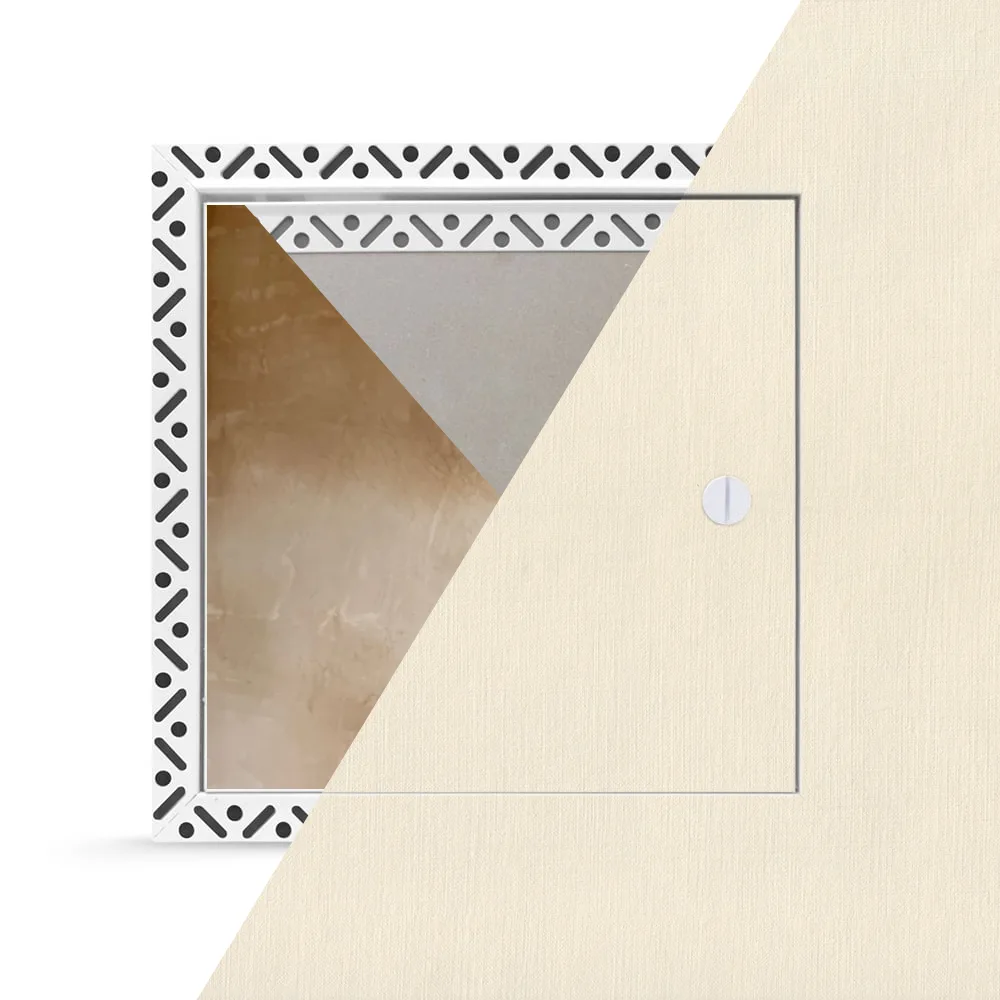

The BFS-PLAST-EC is a non-fire rated Plasterboard Door Access Panel, specifically engineered for seamless, concealed installation via a plaster-in finish.
Concealment & Installation Features:
• Designed for Plastering: The Beaded Frame (BFS) and access door are designed to provide a perfect key for the application of a final plaster finish, ensuring the panel disappears into the wall surface.• Installation Pips: The frame is uniquely fitted with spacer pips to guarantee a consistent, professional, and minimal gap between the door and frame, ensuring aesthetic quality post-plastering.

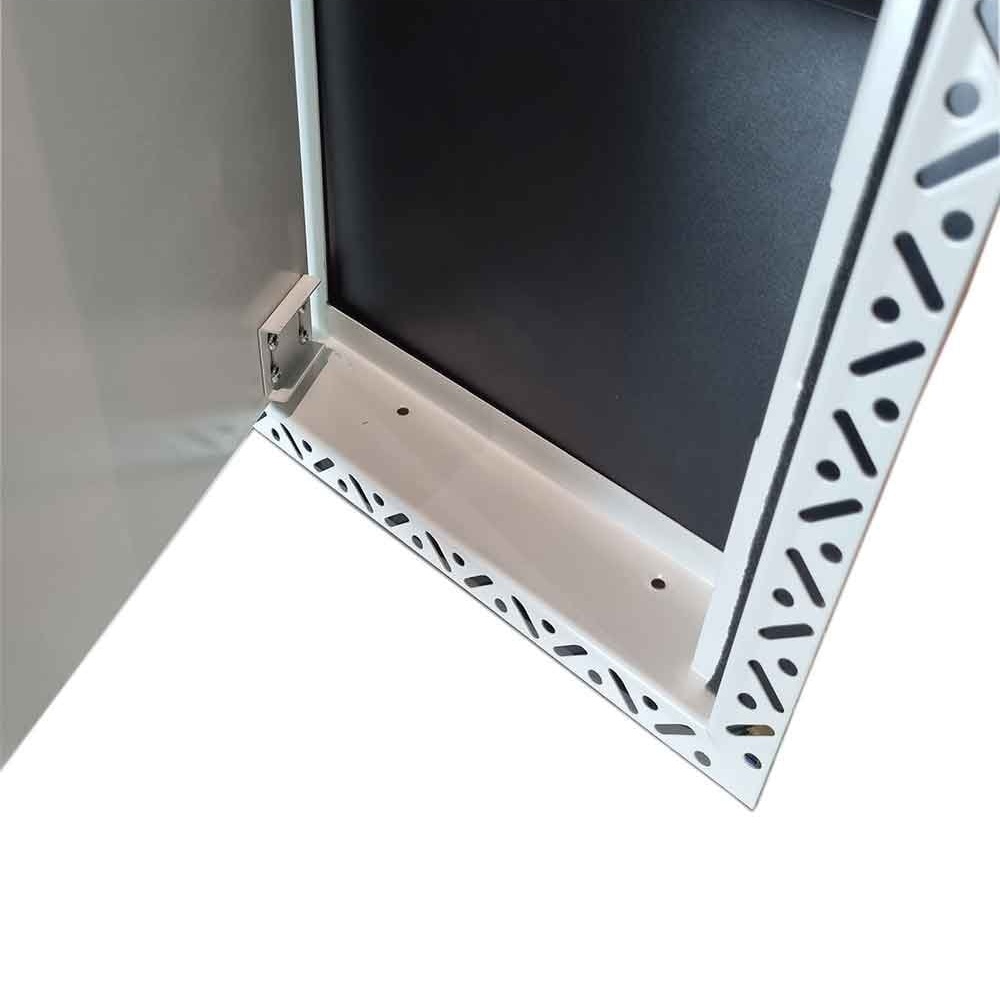

• Ease of Fitting: The hinged door is easily removable, simplifying the initial fitting of the frame and the subsequent plastering process.
Material & Access:
• Door Material: Features a high-grade door with a core suitable for the application of plaster/jointing compound.• Locking Mechanism: Equipped with a standard Budget Lock for straightforward, cost-effective access, suitable for general internal maintenance requirements.
• Application: Ideal for achieving an aesthetically superior, flush finish in non fire-rated wall and ceiling applications.
Fitted with a Budget Lock
We can make this panel to custom dimensions Up to 1200x600mm.
*Hinged on the long edge.
| Code | Size | Overall size (Inc. Frame) |
Clear Opening (Once Installed) |
Depth | Weight |
|---|---|---|---|---|---|
| BFS-PLAST-EC-200X200 | 200x200mm | 205x205mm | 173x140mm | 55mm | 2.2kg |
| BFS-PLAST-EC-300X300 | 300x300mm | 305x305mm | 275x240mm | 55mm | 3.68kg |
| BFS-PLAST-EC-350X350 | 350x350mm | 355x355mm | 322x290mm | 55mm | 4.48kg |
| BFS-PLAST-EC-400X400 | 400x400mm | 405x405mm | 373x340mm | 55mm | 5.48kg |
| BFS-PLAST-EC-450X450 | 450x450mm | 455x455mm | 424x385mm | 55mm | 6.54kg |
| BFS-PLAST-EC-500X500 | 500x500mm | 505x505mm | 472x440mm | 55mm | 7.54kg |
| BFS-PLAST-EC-550X550 | 550x550mm | 555x555mm | 520x490mm | 55mm | 8.81kg |
| BFS-PLAST-EC-600X300 | 600x300mm* | 605x305mm | 560x224mm | 55mm | 6.06kg |
| BFS-PLAST-EC-600X600 | 600x600mm | 605x605mm | 559x514mm | 55mm | 10.18kg |
| BFS-PLAST-EC-900X600 | 900x600mm* | 905x605mm | 842x540mm | 55mm | 14.35kg |
| BFS-PLAST-EC-1200X600 | 1200x600mm* | 1205x605mm | 1159x522mm | 55mm | 17.5kg |
Reviews
-
Great product, more reasonable in price compared to similar items on the market. Only suggestion would be to include instructions for install
-
Delivered on time. Panels look great, were straightforward to install, look great now they're painted as well.
-
Excellent quality item we have used previously and will certainly purchase again.
-
Great company to deal with. Had a damaged item - replaced immediatlety
-
Fantastic access hatch. Half the price of other companies and great quality. Fitted perfectly. Delivered on time. Thanks
-
good product
-
Have ordered multiple access hatches and they are always in stock, prompt delivery and no issues for a great quality product. Excellent service every time.
-
simple ordering, good communication, prompt delivery
Need higher spec?
Upgrade options on the same panel — useful for healthcare, education or acoustic-rated projects.
Specification
- Frame style
- Beaded Frame
- Fire rating
- Non Fire Rated
- Material
- Zintec Steel Frame, Plasterboard Door
- Frame width
- 25mm
- Wall or ceiling
- Both Wall & Ceiling
