STEEL | TOUCH LATCH ACCESS PANEL
Beaded Frame Access Panel | Touch Latch Lock
Non Fire Rated · Beaded Frame
Code:
ex VAT
Size (mm)
Popular sizes
Other sizes
Lock
Save on volume
Ordering 50 or more? We'll prepare a project-specific quote with delivery scheduling and account terms.
Call 01937 325 325 →
14-day returns
Phone support 8–5 Mon–Fri
Trusted by specifiers since 2007
Datasheet
Technical specifications
Test Certificate
STEEL | TOUCH LATCH ACCESS PANEL
Installation Guide
PDF instructions
Product details
- No locks visible when shut (concealed mechanism)
- Press and release to open (push-catch mechanism)
- Slim contemporary panel design
- Hinged door that is easily removable
- Slimline 25mm Picture or Beaded Frame
- Powder-coated in white RAL9010 with satin finish
- Fabricated from 0.9mm zintec steel
- Suitable for wall and ceiling use
The PFS-TL / BFS-TL is our premium, non-fire rated access panel, engineered for aesthetic concealment using a minimalist, touch-latch opening system.
Aesthetic & Concealment Features:
• Seamless Finish: Equipped with a twin touch-latch system, eliminating the need for a visible lock or handle, ensuring a clean, uninterrupted wall or ceiling surface.• Slimline Design: The access door and beaded frame maintain a sleek 25mm profile, contributing to minimal visual intrusion and a flush fit.
Technical Installation Specification:

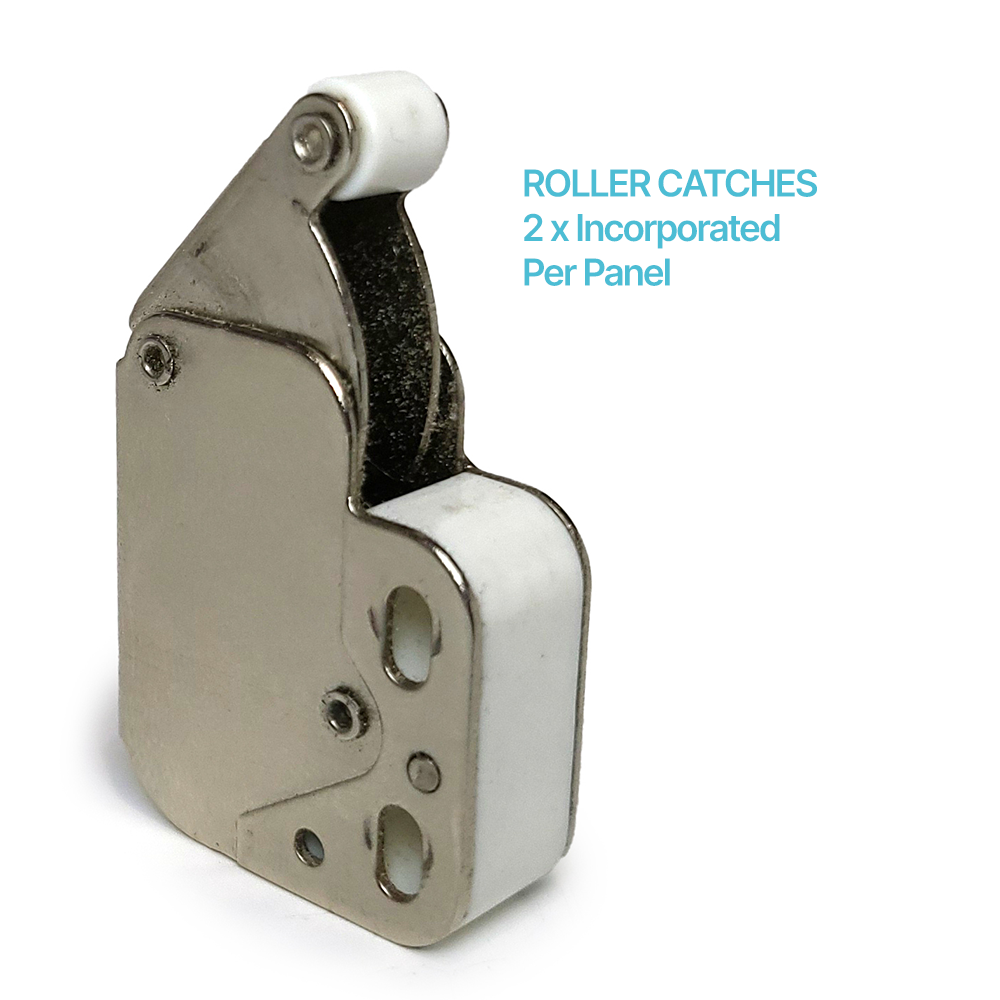

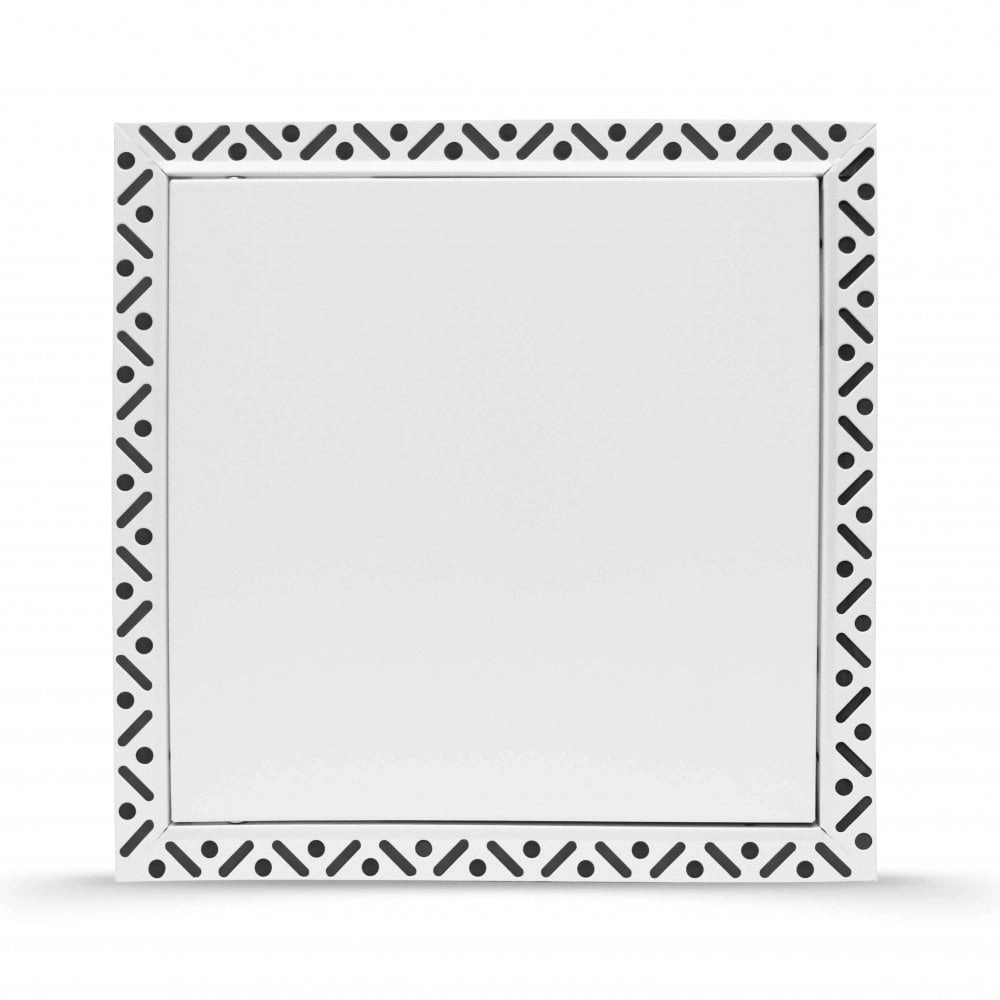

• Frame Options: Available with both a Picture Frame (PFS-TL) for simple surface mounting and a Beaded Frame (BFS-TL) for seamless plaster-in concealment.• Depth Allowance: While the panel depth is 27mm, the twin touch-latch mechanisms extend to 36mm deep. *Allowance for this depth must be factored into the installation void.*
• Construction & Finish: Fabricated from durable Zintec steel and coated in a RAL 9010 White satin finish, supplied with multi-fixing holes for easy installation into varying substrate depths.

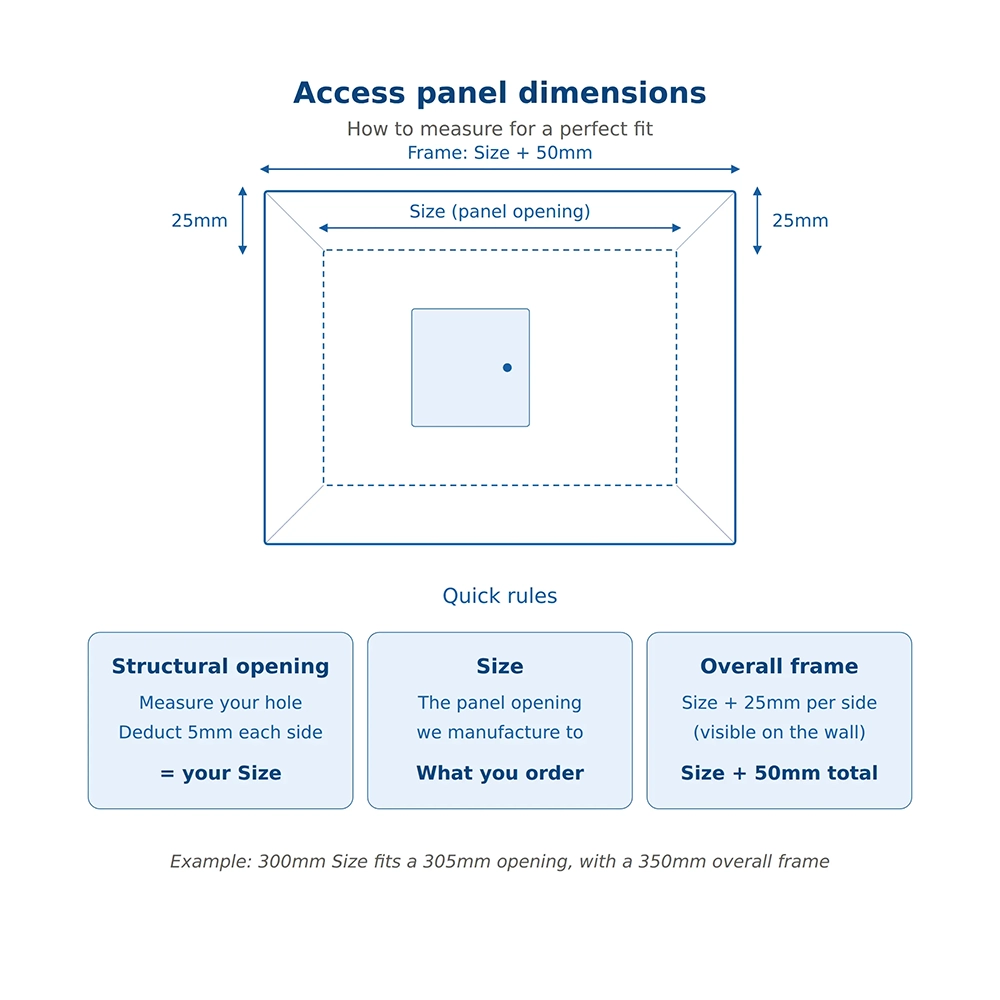

| Code | Size | Structural Opening | Overall size (Inc. Frame) |
Clear Opening (Once Installed) |
Depth | Weight |
|---|---|---|---|---|---|---|
| BFS-TL-150 | 150x150mm | 155x155mm | 200x200mm | 148x100mm | 27mm* | 0.5kg |
| BFS-TL-200 | 200x200mm | 205x205mm | 250x250mm | 198x150mm | 27mm* | 0.7kg |
| BFS-TL-300 | 300x300mm | 305x305mm | 350x350mm | 298x250mm | 27mm* | 1.3kg |
| BFS-TL-350 | 350x350mm | 355x355mm | 400x400mm | 348x300mm | 27mm* | 1.7kg |
| BFS-TL-450 | 450x450mm | 455x455mm | 500x500mm | 448x400mm | 27mm* | 2.6kg |
| BFS-TL-550 | 550x550mm | 555x555mm | 600x600mm | 548x500mm | 27mm* | 3.4kg |
| BFS-TL-600 | 600x600mm | 605x605mm | 650x650mm | 598x550mm | 27mm* | 3.8kg |
Reviews
4.00
Based on 2 reviews
-
Great service always use Jupiter Blue for that reason,
-
This product is fine as is the service from Jupiter.
Specification
- Frame style
- Beaded Frame
- Fire rating
- Non Fire Rated
- Material
- Zintec Steel, white finish
- Frame width
- 25mm
- Wall or ceiling
- Both Wall & Ceiling
