Category
Fire Rated
Fire-rated access panels give access to the services hidden in fire-compartmented walls and ceilings — pipework, cables, valves — without breaking the fire barrier that protects compartments and escape routes. Every one is independently fire tested and rated in minutes for how long it holds back fire.
Jupiter Blue's range runs from 60 to 120 minutes, in picture-frame and beaded formats, standard and made-to-measure — and sits within our wider access panel range, which includes non-rated options.
1-HOUR FIRE RATED

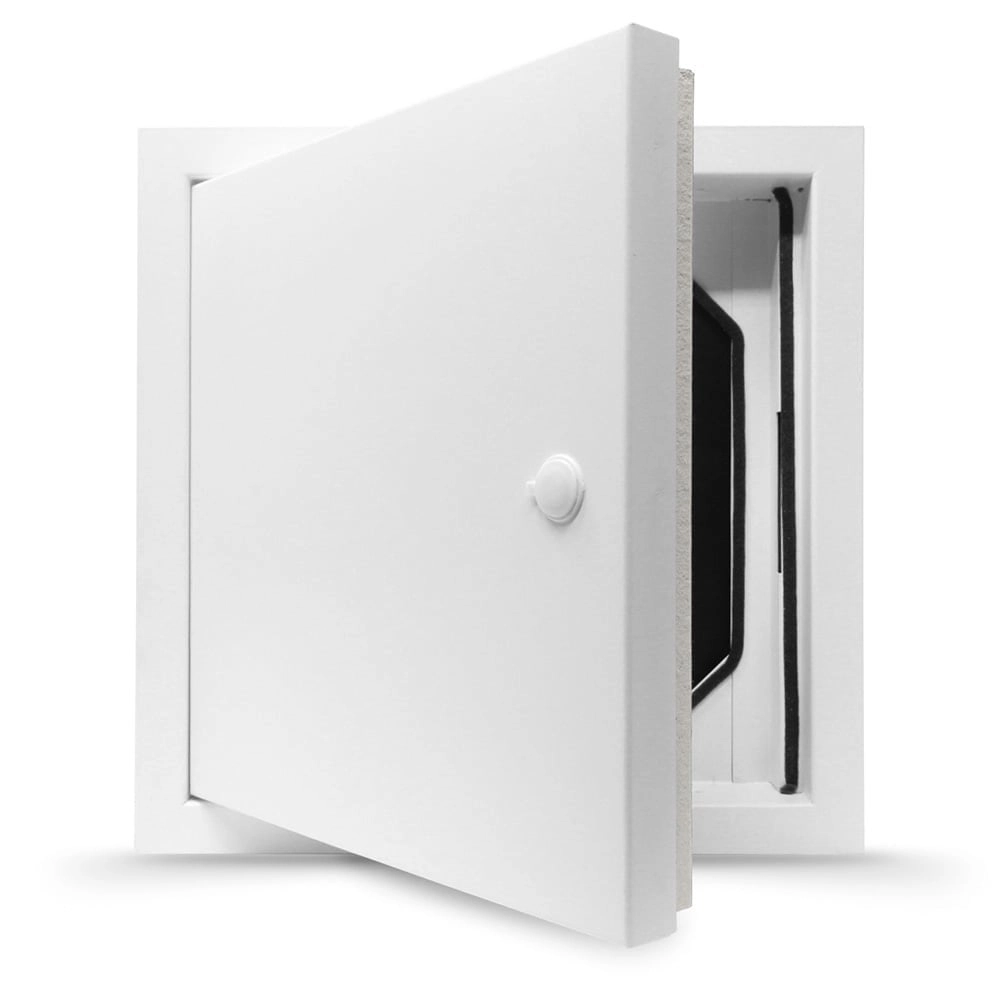

1hr Fire Rated Access Panel | Picture Frame | Picture Frame
- Zintec Steel, white finish
- Fits: Both Wall & Ceiling
- Insulated: 0.78 U value
- 34dB Acoustic reduction
1-HOUR FIRE RATED | AIR TESTED
1hr Fire Rated Air Tested Access Panel | Picture Frame
- Zintec Steel, white finish
- Fits: Both Wall & Ceiling
- Insulated: 0.78 U value
- 34dB Acoustic reduction
2-HOUR FIRE RATED | Both Sides
Duplex SP 120 Single Door 2hr Fire Rated Both Sides | Picture or Beaded
- Zintec Steel, white finish
- Fits: Wall Only
- Insulated: 0.55 U Value
- 36dB Acoustic reduction
2-HOUR FIRE RATED
Fire rated access panel with lift out door | Picture or Beaded
- Zintec Steel, white finish
- Fits: Wall only
- Insulated: Smoke test 1.23 m³/hr/lm
- 30dB Acoustic reduction
2-HOUR FIRE RATED
Economy Fire Rated Access Panel | Picture or Beaded
- Zintec Steel, white finish
- Fits: Wall Only
1-HOUR FIRE RATED

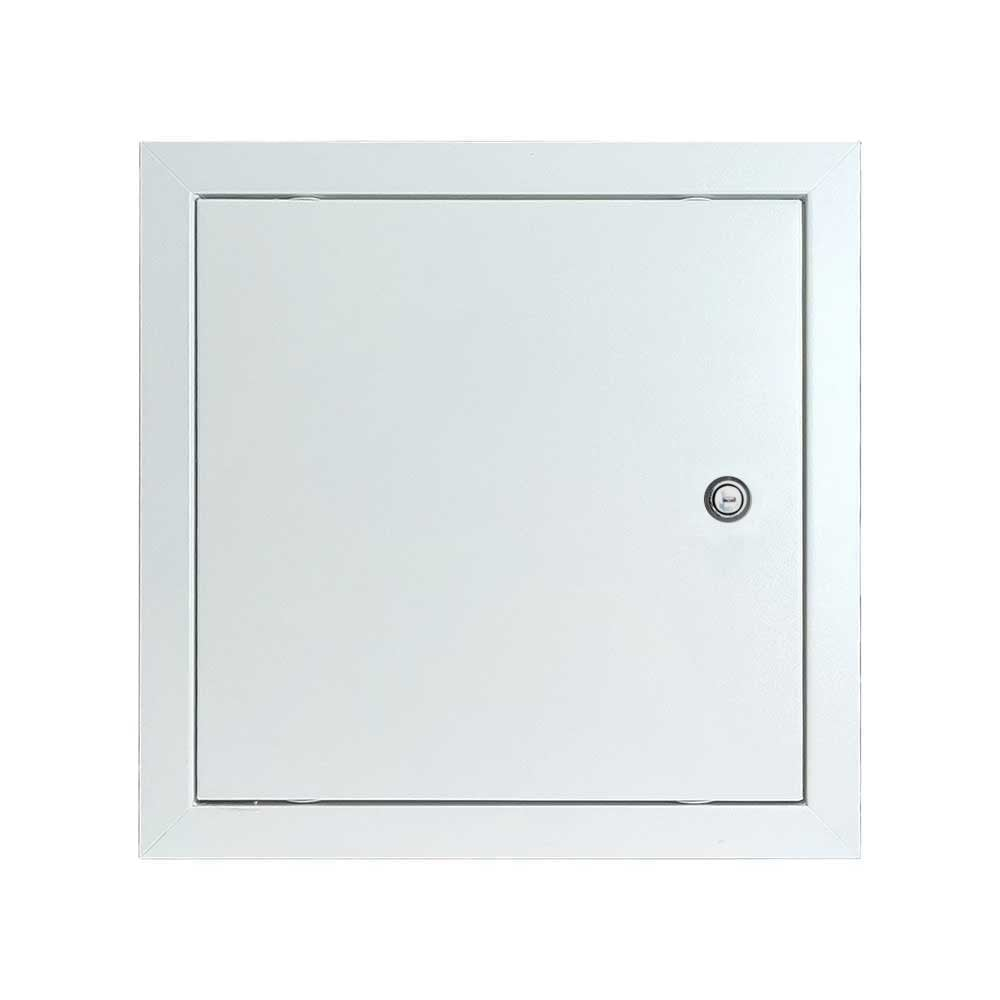

1hr Fire Rated Anti-ligature Access Panel | Picture Frame
- Zintec Steel, white finish
- Fits: Both Wall & Ceiling
- 36dB Acoustic reduction
1-HOUR FIRE RATED | PLASTERBOARD
1hr Fire Rated Access Panels with Plaster Door | Beaded Frame
- Zintec Steel Frame, Plasterboard Door
- Fits: Both Wall & Ceiling
- 21dB Acoustic reduction
90-MIN FIRE RATED

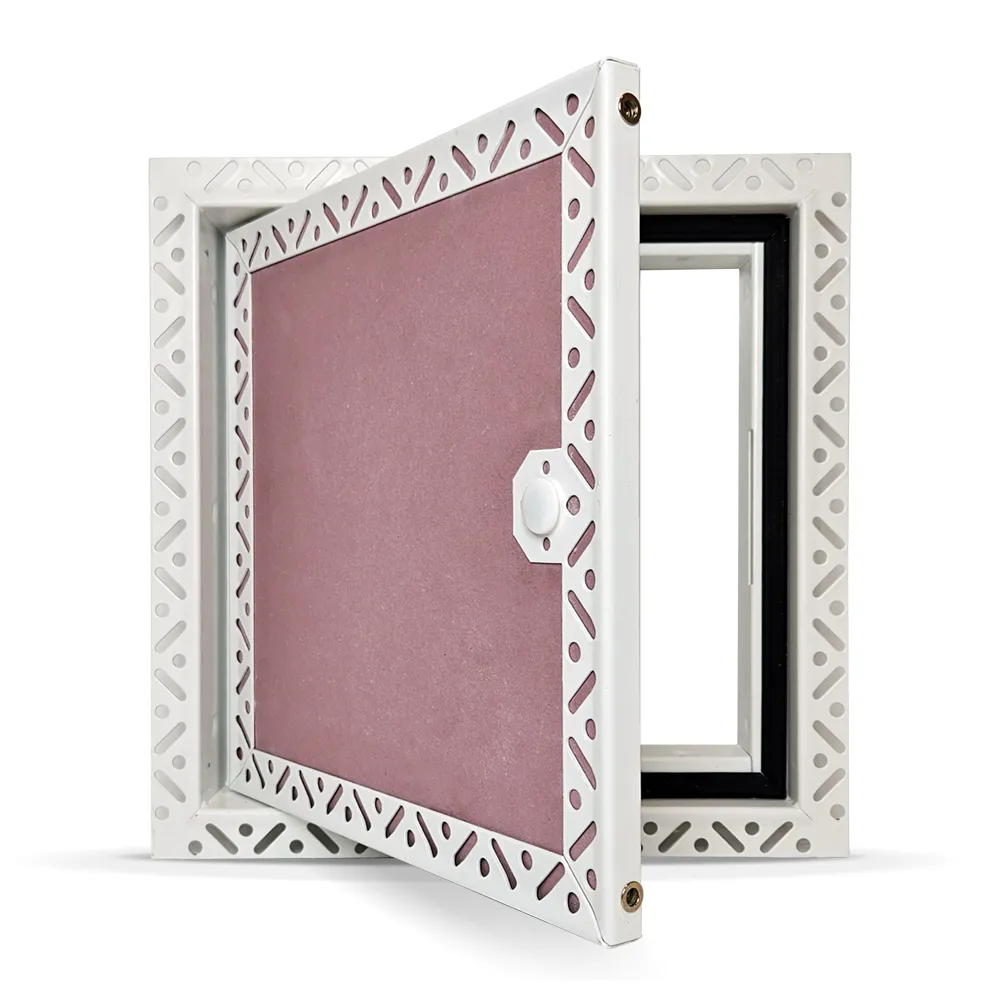

90Min Fire Rated Slim Access Panel with Plaster Door (Ceiling) | Beaded Frame
- Zintec Steel Frame, Plasterboard Door
- Fits: Ceiling Only
- 21dB Acoustic reduction
1-HOUR FIRE RATED | INSULATED | AIR TES
1hr Fire Rated, Insulated & Air Tested Access Panel | Picture Frame
- Zintec Steel, white finish
- Fits: Both Wall & Ceiling
- Insulated: Panels of 450mm and larger are 0.35 "U" value, below that size are 0.77 "U" value
- 36dB Acoustic reduction
1-HOUR FIRE RATED
1hr Fire Rated Access Panel | Beaded Frame | Beaded Frame
- Zintec Steel, white finish
- Fits: Both Wall & Ceiling
- 34dB Acoustic reduction
1-HOUR FIRE RATED | AIR TESTED

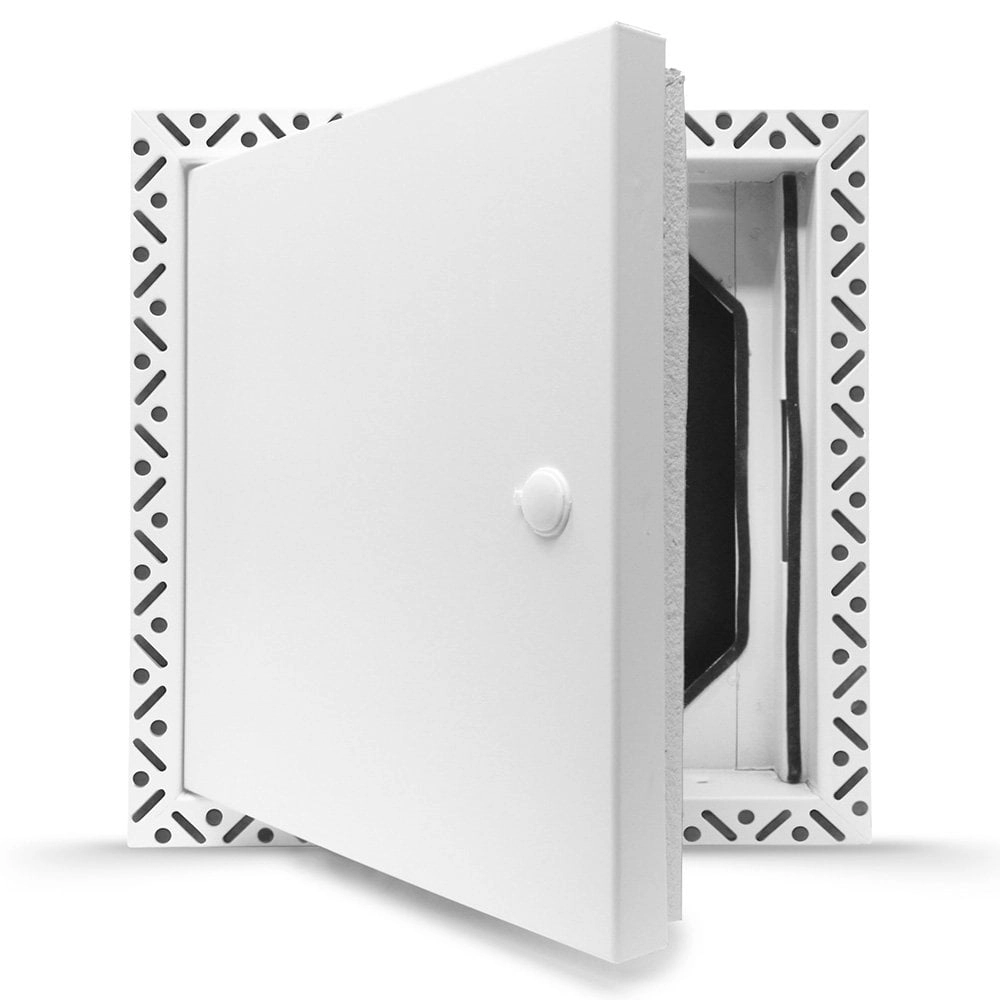

1hr Fire Rated Air Tested Access Panel | Beaded Frame
- Zintec Steel, white finish
- Fits: Both Wall & Ceiling
- Insulated: BS EN 1634-3 Smoke Test Approved (max 600x600mm on test specimen)
- 34dB Acoustic reduction
1-HOUR FIRE RATED | ACOUSTIC

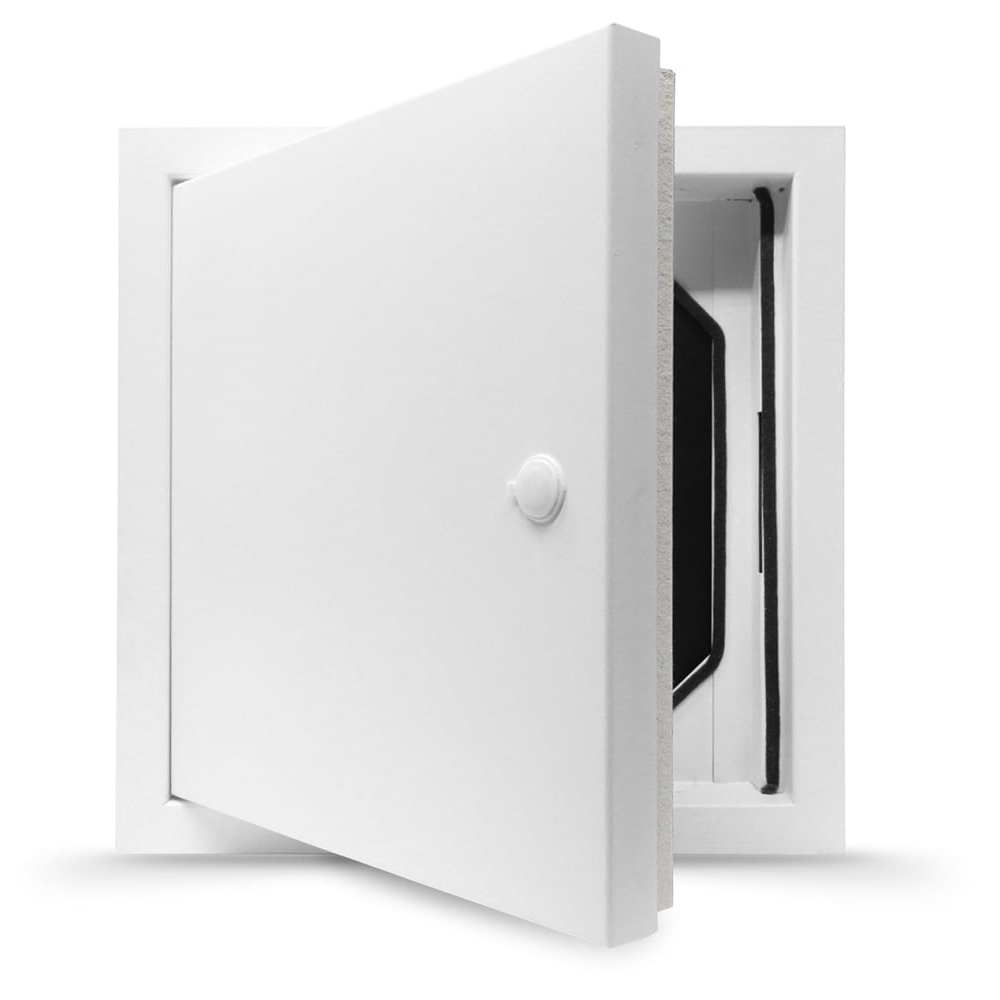

1hr Fire Rated Access Panel 40dB Acoustic Reduction | Picture Frame
- Zintec Steel, white finish
- Fits: Both Wall & Ceiling
- Insulated: 0.45 U Value
- 40dB Acoustic reduction
Why fire-rated access matters
Where services pass through a fire-compartmented wall or ceiling — a service duct, a protected escape route, a utility riser — the access point has to hold the same fire resistance as the surface around it. A fire-rated access panel does exactly that: a secure, tested door that lets you reach what's behind it without creating a weak spot in the fire barrier. Building Regulations and the project specification will normally state where one is required, and to what rating.
Ratings, formats and sizes
Our fire-rated panels are tested to BS EN 1634-1 and rated at 60, 90 or 120 minutes; many are tested from both sides (duplex), and the range extends to riser doors for larger openings. Choose a picture frame (surface-mounted, frame visible) or a beaded frame (plastered in for a near-flush finish), in standard stock sizes or made-to-measure for non-standard openings.
The widest range in the UK — in stock
We hold the UK's widest range of fire-rated access panels, with most sizes in stock and free next-working-day delivery across the range. Every panel is fully guaranteed, backed by our no-quibble money-back guarantee — and if you need help matching a panel to a specification, our product experts are on 01937 325 325.
