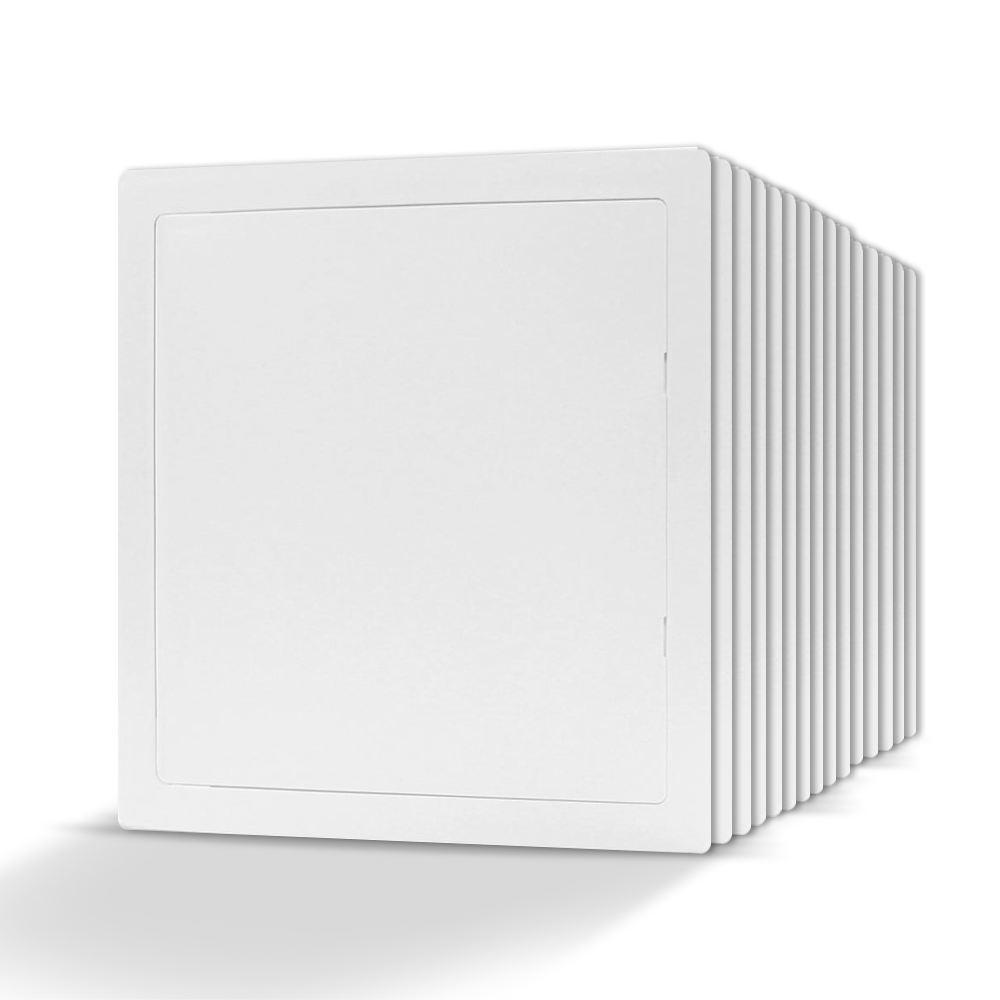

Plastic Access Panel - Saver Bundle - (15) - 15%
Non Fire Rated · Picture Frame
Code:
ex VAT
Size (mm)
Save on volume
Ordering 50 or more? We'll prepare a project-specific quote with delivery scheduling and account terms.
Call 01937 325 325 →
14-day returns
Phone support 8–5 Mon–Fri
Trusted by specifiers since 2007
Product details
- Please Note: Plastic access panels are not fire rated
- Aperture designed for easy access
- Designed for a flush, discreet finish
- Suitable for all unheated voids
- Push-fit / Snap Friction closure (Quick and easy installation)
- Finely textured surface to accept a paint finish
- High-impact UV stable white plastic
- Guaranteed to not sag when fitted in ceilings.
Our UK-manufactured range of Plastic Access Panels sets the industry benchmark for structural integrity and aesthetic longevity.
Structural Performance Guarantee:
• Certified not to discolour: Engineered for superior structural integrity, all panel sizes are certified to prevent door-sagging when fitted in ceilings - a market-leading performance promise.
• Aesthetic Continuity: The precision-designed hinged door ensures a permanently flush fit with the frame, maintaining a clean, seamless finish regardless of installation orientation (wall or ceiling).
Enhanced Building Performance:
• Acoustic Reduction: These lightweight panels deliver a measurable 20dB acoustic reduction in situ, contributing directly to building performance targets.
• Rapid Installation: Designed for quick fitting and minimal labour.
*Hinged on the long edge.
| Code | Size | Structural Opening | Overall size (Inc. Frame) | Flange | Clear Opening (Once Installed) | Depth | Weight |
|---|---|---|---|---|---|---|---|
| HA100-150 | 100x150mm* | 105x155mm | 130x180mm | 17mm | 83x140mm | 16mm | 0.085kg |
| HA150-150 | 150x150mm | 155x155mm | 180x180mm | 17mm | 132x140mm | 16mm | 0.115kg |
| HA150-230 | 150x230mm* | 155x235mm | 182x260mm | 17mm | 132x220mm | 16mm | 0.160kg |
| HA200-200 | 200x200mm | 205x205mm | 247x247mm | 25mm | 191x194mm | 16mm | 0.26kg |
| HA300-300 | 300x300mm | 305x305mm | 350x350mm | 25mm | 287x270mm | 16mm | 0.47kg |
| HA350-350 | 350x350mm | 355x355mm | 410x410mm | 35mm | 337x320mm | 16mm | 0.635kg |
| HA400-400 | 400x400mm | 405x405mm | 440x440mm | 25mm | 365x380mm | 25mm | 0.55kg |
| HA450-450 | 450x450mm | 455x455mm | 510x510mm | 35mm | 416x437mm | 16mm | 1.03kg |
| HA550-550 | 550x550mm | 555x555mm | 620x620mm | 40mm | 532x518mm | 16mm | 1.47kg |
Specification
- Frame style
- Picture Frame
- Fire rating
- Non Fire Rated
- Material
- UV Stable Plastic
- Wall or ceiling
- Both Wall or Ceiling
