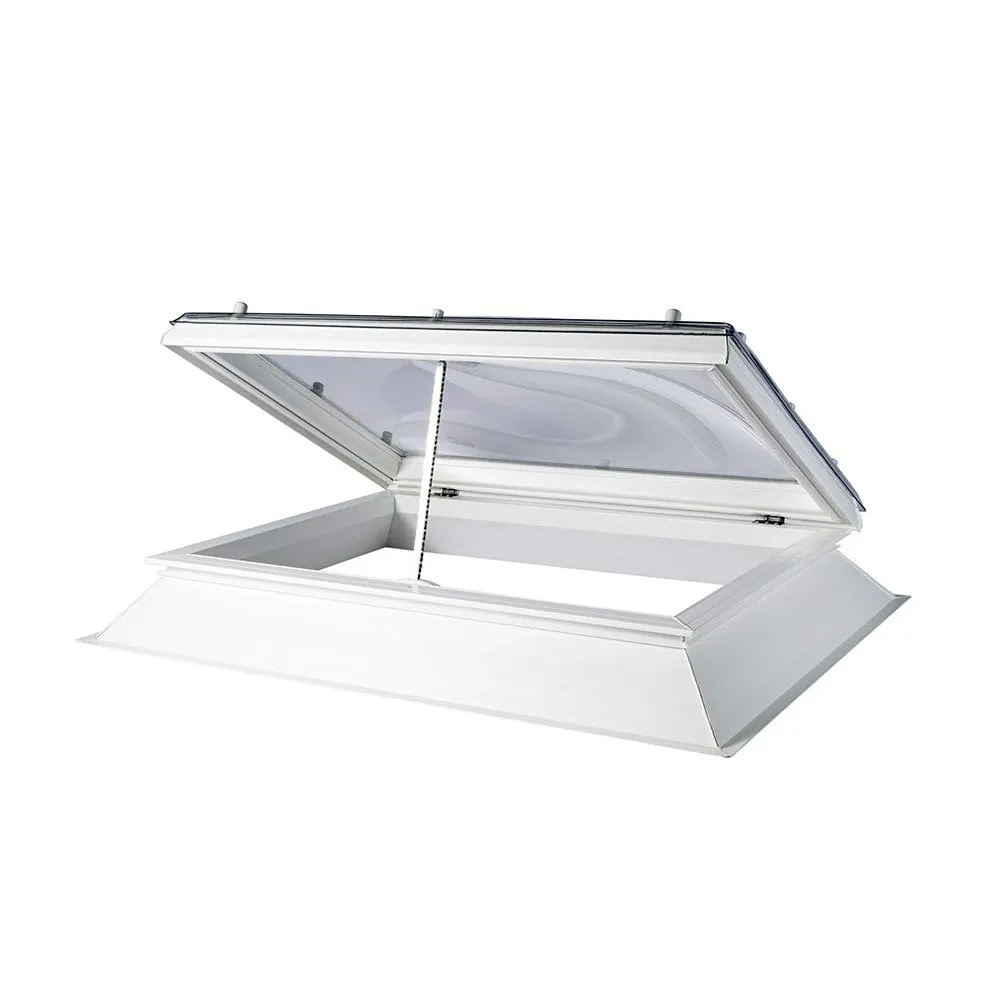

Coxdome Classic Rectangular - Electric opening Rooflight

Classic Range – Electric Opening Polycarbonate Roof Domes

COXDOME’s Classic Range electric-rooflights are precision-engineered flat-roof domes, available in double or triple-skinned polycarbonate, topped by a 150 mm PVC‑u upstand featuring a thermal break for improved insulation and reduced condensation.

Offering excellent value and quality, these domes come in clear or diffused finishes, and sizes from 600 mm up to a massive 3,000 mm. The electric chain-drive system, controlled via wall switch, opens the dome to approximately 300 mm—perfect for ventilation.

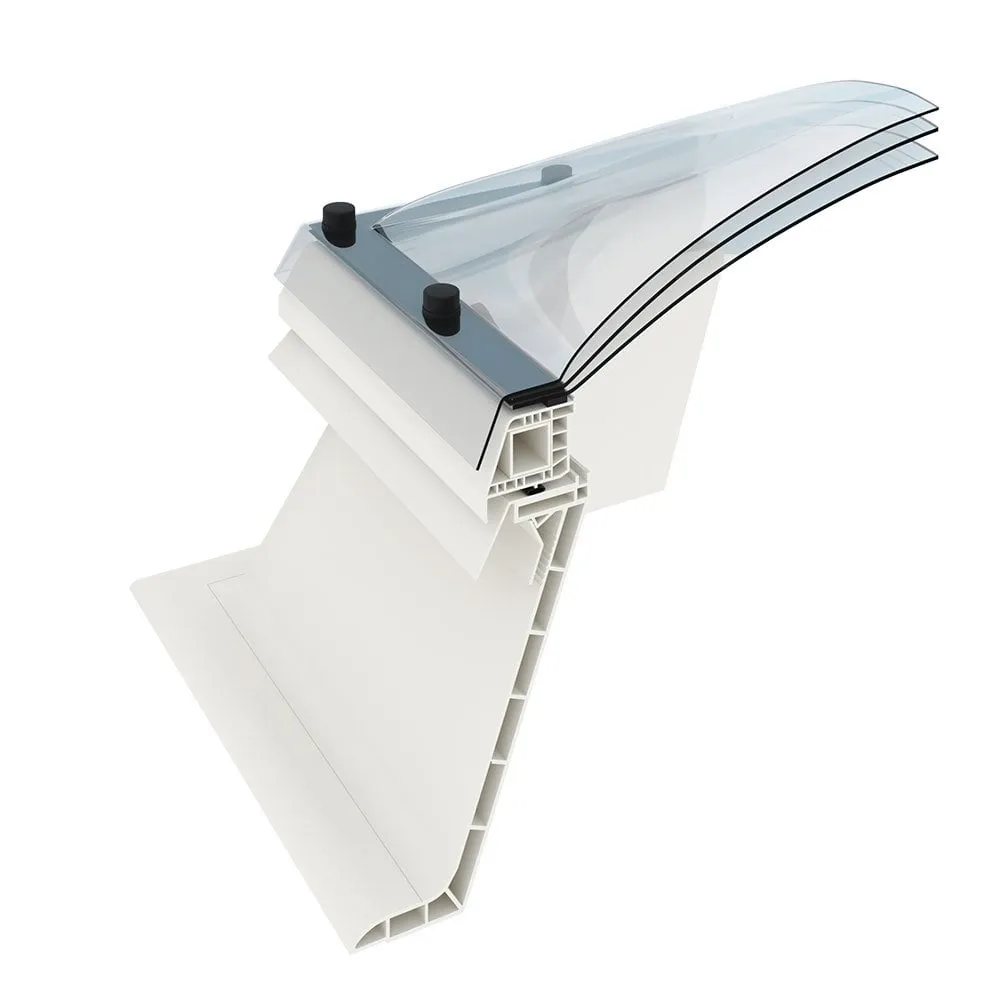

The dome’s modular design ensures fast, easy installation and versatile configuration options. The polycarbonate dome and thermally broken PVC‑u base frame deliver robust thermal performance, excellent waterproofing, and high condensation resistance.

Optional Upgrades

Take your Classic dome further with two premium add-ons, available to select at the basket:

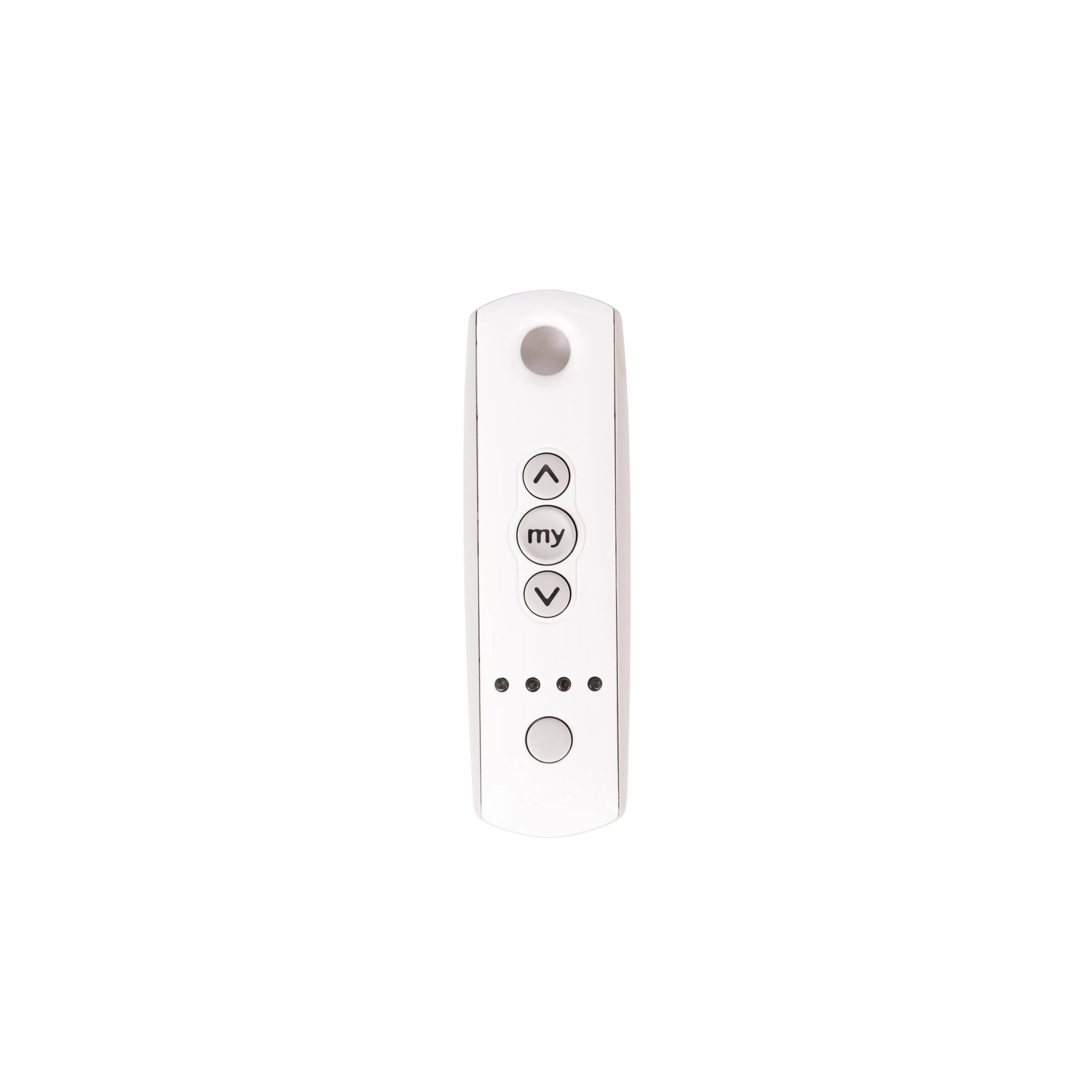

• Remote Control & Receiver — upgrade to effortless motorised opening and closing at the touch of a handset, no winding pole needed.

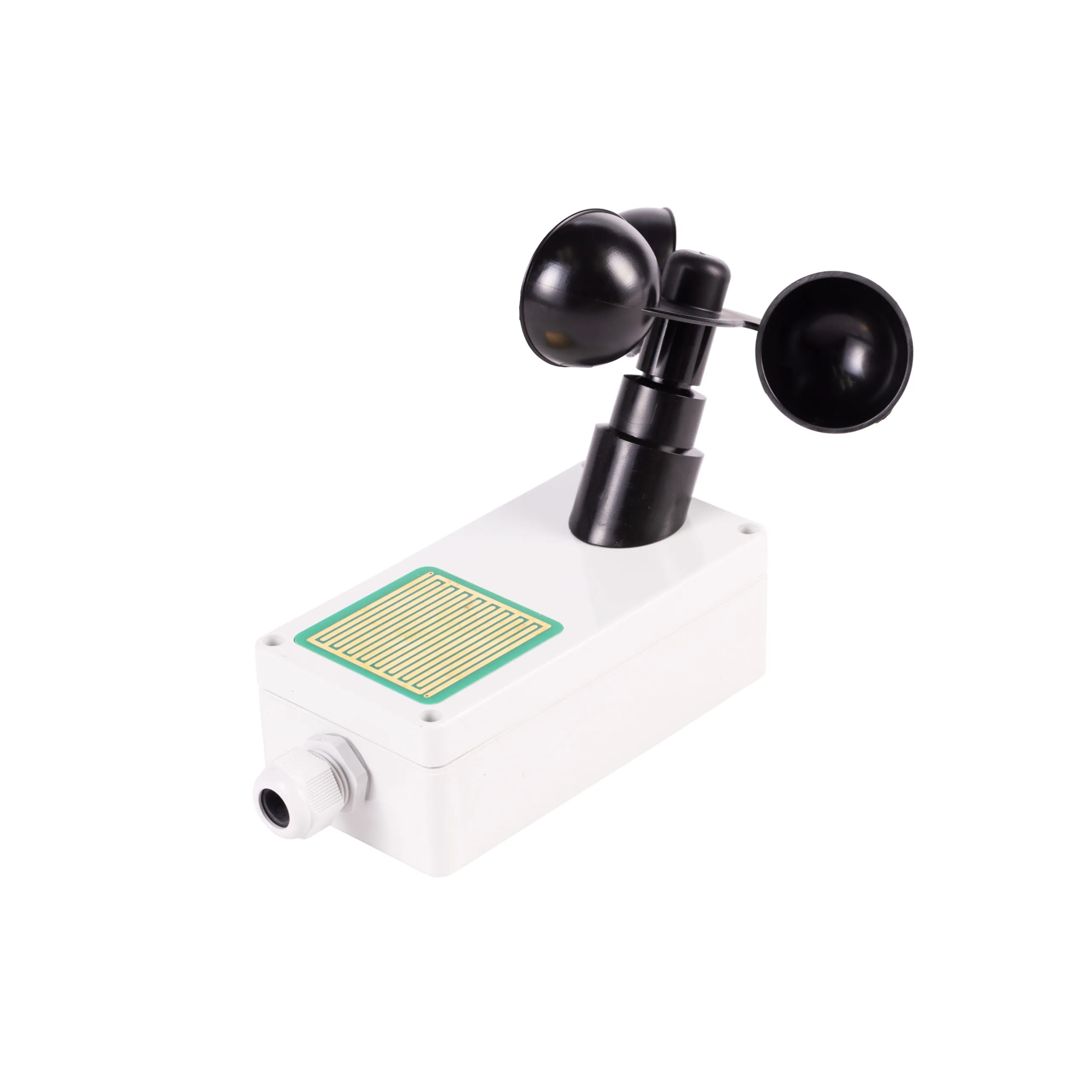

• Wind & Rain Sensor — automatically closes the dome at the first sign of rain or high wind, protecting your interior when you're not there.

Highlights:

• Choose between double and triple skin options for enhanced thermal and acoustic performance
• Available in clear or diffused finishes
• Supplied with high-security, tamper‑proof fixings and a PVC‑u upstand
• Suitable for a wide range of flat roofing systems, including single-ply, GRP, hot-melt, asphalt, liquid, and lead
• Electric chain-drive operation with wall-mounted switch and optional remote control

Performance Specifications:

• Double-skin: U‑value 2.7; ~20 dB noise reduction
• Triple-skin: U‑value 1.7; ~22 dB noise reduction
• 150 mm upstand U‑value: 1.8
• CE marked under EN 1873; Class B non‑fragile, ACR(M)001 soft‑body tested
• Impact-resistant 3 mm polycarbonate glazing
• Fire-rated B‑s1‑d0 to BS EN 15301‑1:2007
